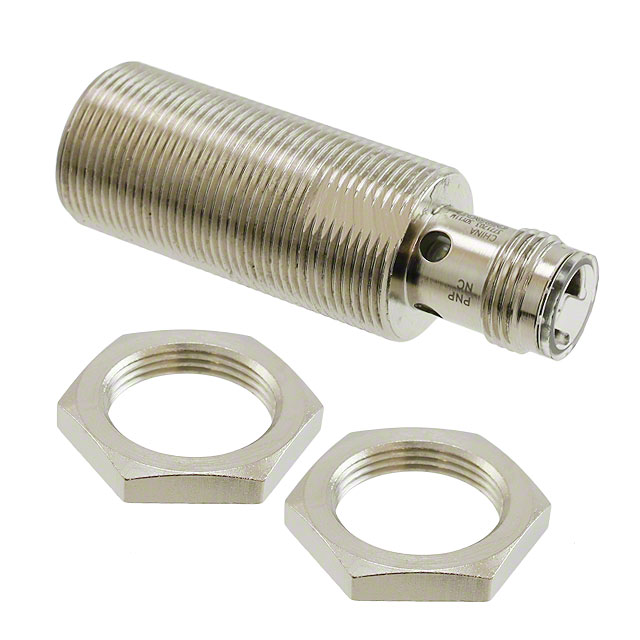

E2A-M18KS08-M1-B2

电感性接近传感器, 圆柱型, E2A Series, M18, 8 mm, PNP-NC, 12 V至 24 V, 连接器

The from Industrial Automation is an E2A series cylindrical proximity sensor. It has a safe mounting with greater sensing distance approximately 1.5 to 2 times larger than that of any conventional Omron sensor. This cylindrical proximity sensor uses high-frequency oscillations. It resists heat, chemicals and water better than rectangular sensors.

.

Standard, M18, short barrel, shielded,

.

Cylindrical, metric threaded, brass housing

.

Sensing distance is 8mm

.

M12 connector 4 pole connection

.

DC power source, 3 wire, PNP open collector output

.

Operating mode is normally closed NC

.

Power supply voltage range from 12VDC to 24VDC

.

Yellow LED for indication

.

Insulation resistance is 50Mohm min at 500VDC, dielectric strength is 1000VAC at 50/60Hz

.

Approved by IEC60529, EN60947-5-2 standards, water resistance IP67
