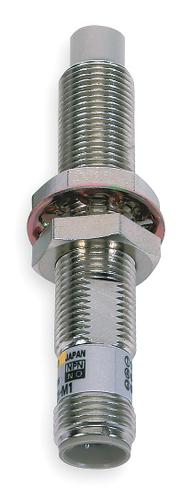

E2E2-X2C1-M1

2 mm NPN-常开 柱体 电感接近传感器, M12, 200 mA, 12 → 24 V 直流, IP67

**Inductive Sensing:** A Sensing technology that identifies the presence of metallic objects by detecting eddy current losses in a magnetic field produced at a sensing face.

**Features:**

* Nickel-Plated Brass Body for High Durability

* Easy-to-See LED Operation Indicator Allows Quick Confirmation of Output Status

* AC 2-Wire, DC 3-Wire, Pre-Wired with 2 Meter PVC Cable for Durability

* Quick Connect Types Also Available for Fast Change-Out, Connector Cordsets Sold Separately

* Built-In Wrench Flats Ease Installation, Nuts and Lockwasher Are Provided

* Enclosure Ratings Include IEC IP67, NEMA 1, 3, 4, 6, 12 and 13

**Specifications:

**

* Supply Voltage Range: 10-55 VDC or 20-264 VAC, 50/60 Hz Model Dependant

* Load Rating: 200 mA DC or 5-200 mA/5-300 mA AC Model Dependant

* Approvals: CE, UL, CSA Model Dependant
