拨动开关 Toggle Switch

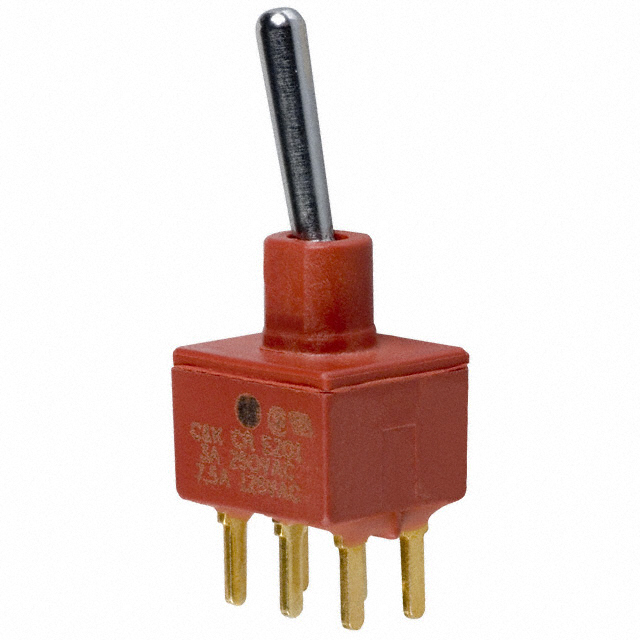

The sealed toggle switch from C&K Components is a simple way to power on and off various components of your application. This device has a maximum current rating of 7.5 A @ 125VAC 28VDC. It has a DPDT configuration. This toggle switch has an operating temperature range of -30 °C to 85 °C. The E201SD1CQE toggle switch has a PC pin termination style. This product is 12.7 mm long, 29.49 mm tall and 11.43 mm deep. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 28 VDC.
额定电压DC 28 V
额定电压AC 125 V
额定电流 7.5A AC, 7.5A DC
排数 2
额定电流Max 7.5A @125VAC, 28VDC
额定功率Max 0.4VA @20VAC, 20VDC
工作温度Max 85 ℃
工作温度Min -30 ℃
额定电压DC Max 28 V
额定电压AC Max 250 V
接触电阻Max <10 mΩ
安装方式 Through Hole
封装 散装
长度 12.7 mm
高度 29.49 mm
封装 散装
触点材质 Coin Silver
工作温度 -30℃ ~ 85℃
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509065
