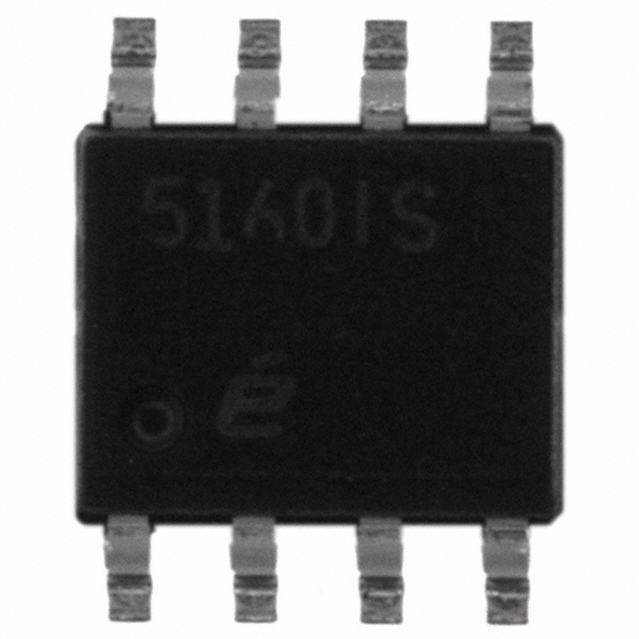

EL5160IS

200MHz电流反馈放大器

The EL5160, EL5161, EL5260, EL5261, and EL5360 are current feedback amplifiers with a bandwidth of 200MHz and operate from just 0.75mA supply current. This makes these amplifiers ideal for today’s high speed video and monitor applications.

With the ability to run from a single supply voltage from 5V to 10V, these amplifiers are ideal for handheld, portable, or battery-powered equipment.

Features

• 200MHz -3dB bandwidth

• 0.75mA supply current

• 1700V/µs slew rate

• Single and dual supply operation, from 5V to 10V supply span

• Fast enable/disable EL5160, EL5260 and EL5360 only

• Available in SOT-23 packages

• Pb-Free plus anneal available RoHS compliant

Applications

• Battery-powered equipment

• Handheld, portable devices

• Video amplifiers

• Cable drivers

• RGB amplifiers

• Test equipment

• Instrumentation

• Current-to-voltage converters
