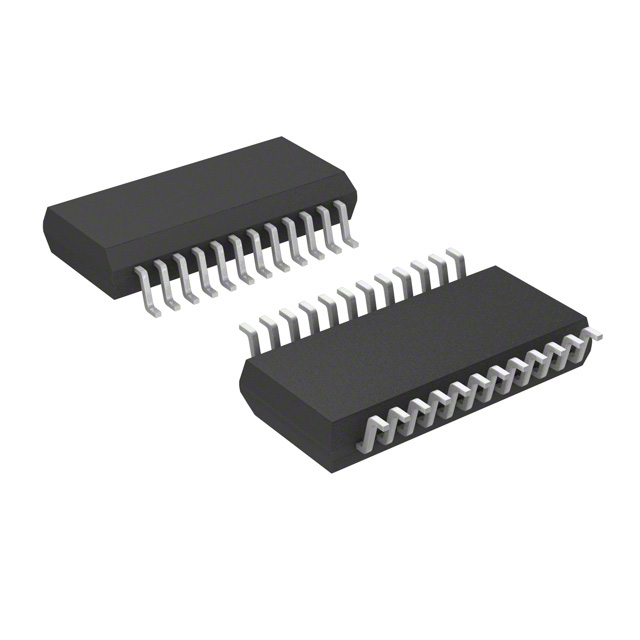

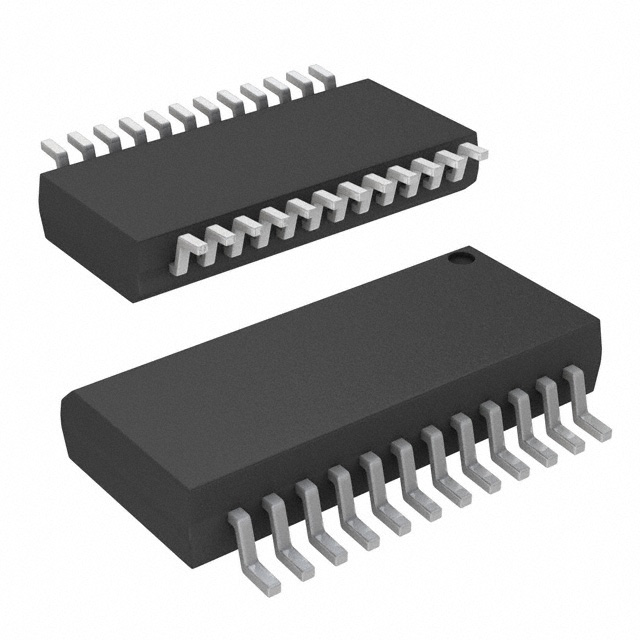

EL5373IU

450MHz的差分双绞线驱动器 450MHz Differential Twisted-Pair Drivers

The EL5173 and EL5373 are single and triple high bandwidth amplifiers with a fixed gain of 2. They are primarily targeted for applications such as driving twisted-pair lines in component video applications. The inputs can be in either single-ended or differential form but the outputs are always in differential form.

The output common mode level for each channel is set by the associated REF pin, which have a -3dB bandwidth of over 190MHz. Generally, these pins are grounded but can be tied to any voltage reference.

Features

• Fully differential inputs and outputs

• Differential input range ±2.3V

• 450MHz 3dB bandwidth at fixed gain of 2

• 900V/µs slew rate EL5173

• 1100V/µs slew rate EL5373

• Single 5V or dual ±5V supplies

• 40mA maximum output current

• Low power - 12mA per channel

• Pb-free available RoHS compliant

Applications

• Twisted-pair drivers

• Differential line drivers

• VGA over twisted-pairs

• ADSL/HDSL drivers

• Single ended to differential amplification

• Transmission of analog signals in a noisy environment
