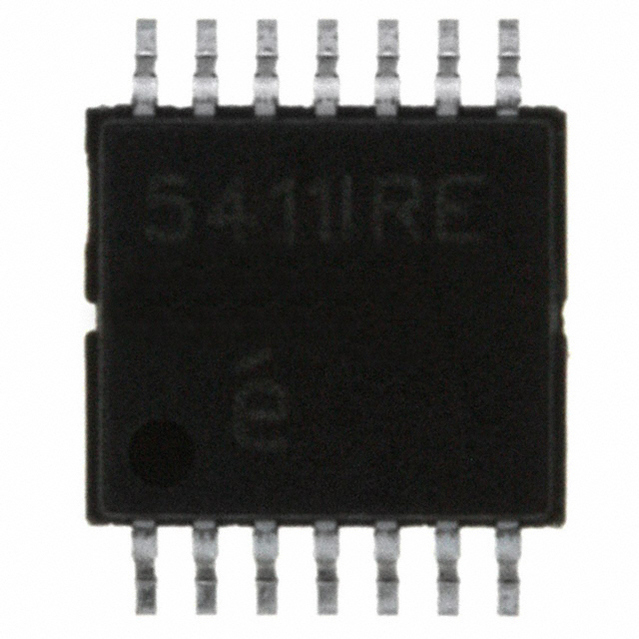

EL5411IRE

60MHz的轨至轨输入输出运算放大器 60MHz Rail-to-Rail Input-Output Op Amps

The EL5111, EL5211, and EL5411 are low power, high voltage rail-to-rail input-output amplifiers. The EL5111 represents a single amplifier, the EL5211 contains two amplifiers, and the EL5411 contains four amplifiers. Operating on supplies ranging from 5V to 15V, while consuming only 2.5mA per amplifier, the EL5111, EL5211, and EL5411 have a bandwidth of 60MHz -3dB. They also provide common mode input ability beyond the supply rails, as well as rail-to-rail output capability. This enables these amplifiers to offer maximum dynamic range at any supply voltage.

Features

• Pb-free plus anneal available RoHS compliant

• 60MHz -3dB bandwidth

• Supply voltage = 4.5V to 16.5V

• Low supply current per amplifier = 2.5mA

• High slew rate = 75V/µs

• Unity-gain stable

• Beyond the rails input capability

• Rail-to-rail output swing

• ±180mA output short current

Applications

• TFT-LCD panels

•VCOMamplifiers

• Drivers for A-to-D converters

• Data acquisition

• Video processing

• Audio processing
