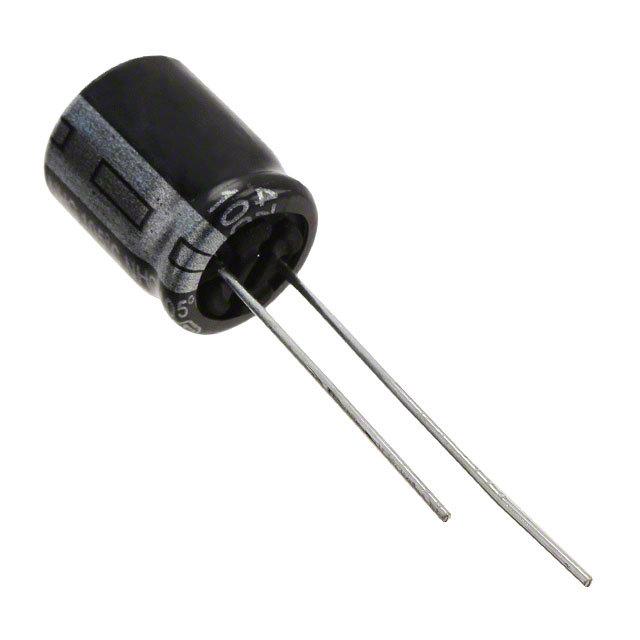

PANASONIC ELECTRONIC COMPONENTS ECA-2CHG220 铝电解电容, AEC-Q200 NHG系列, 22 µF, ± 20%, 160 V, 10 mm, 径向引线
The NHG series is automotive grade Type A, radial leaded polarized aluminium electrolytic capacitor. NHG series parts cover broad range of voltage ratings and capacitance values. Typical applications include audio, video and general purpose electronic circuits.
- .
- Capacitance value ranges 2.2µF to 22000µF for 6.3VDC to 100VDC
- .
- Capacitance value ranges 1µF to 330µF for 160VDC to 450VDC
- .
- Available in -55°C to 105°C and -25°C to 105°C temperature range based on rated voltage
- .
- Capacitance tolerance is ±20%
- .
- Endurance at 105°C from 1000h to 2000h
- .
- Low ESR and high ripple current
- .
- Automotive grade AEC-Q200 compliant
额定电压DC 160 V
电容 22 µF
容差 ±20 %
纹波电流 130 mA
工作温度Max 105 ℃
工作温度Min -25 ℃
额定电压 160 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 5 mm
长度 20 mm
高度 20 mm
直径 10.0 mm
封装 Radial, CAN
引脚间距 5 mm
介质材料 Aluminum Electrolytic
工作温度 -25℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
寿命（小时） 2000h @105℃
制造应用 Industrial, 车用, 电源管理, Portable Devices, 工业, Automotive, 通用, Consumer Electronics, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8532220020
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ECA-2CHG220 Panasonic 松下 | 当前型号 | 当前型号 |
ECA-2CHG220B 松下 | 类似代替 | ECA-2CHG220和ECA-2CHG220B的区别 |
ESH226M160AH4AA 基美 | 类似代替 | ECA-2CHG220和ESH226M160AH4AA的区别 |
EKMG161ELL220MJ20S 贵弥功 | 功能相似 | ECA-2CHG220和EKMG161ELL220MJ20S的区别 |
