EEEFC1V101P

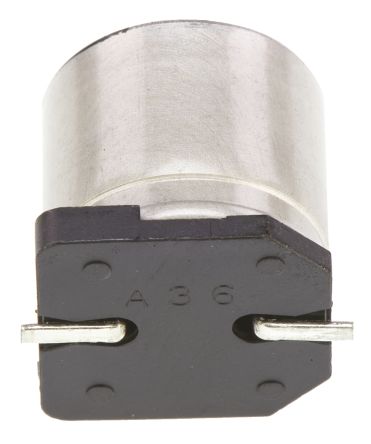

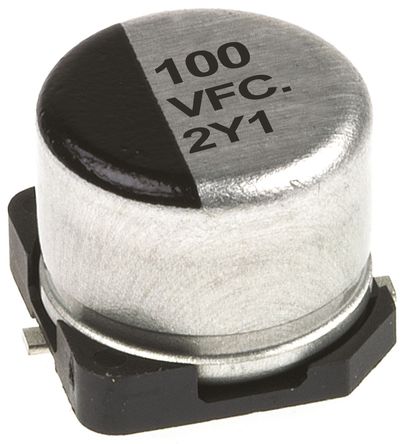

PANASONIC ELECTRONIC COMPONENTS  EEEFC1V101P  铝电解电容, 表面贴装, FC系列, 100 µF, 35 V, Radial Can - SMD, 10 mm

FC 系列卷筒

.

后缀的部件号可耐受较高的回流温度，用于延长使用寿命

Dimensions mm

---

Case Code | A | B Max | I | P | W

D | 6.6 | 5.8 | 2.6 | 1.8 | 0.65 ±0.1

E | 8.3 | 9.5 | 3.4 | 2.2 | 0.65 ±0.1

F | 8.3 | 10 | 3.4 | 3.1 | 0.9 ±0.3

G | 10.3 | 13 | 3.5 | 4.6 | 0.9 ±0.3

立创商城:
100uF ±20% 35V

欧时:
Panasonic 铝电解电容器 FC SMD 系列, 35V dc, 100μF 表面安装器件, EEEFC1V101P

e络盟:
铝电解电容, 表面贴装, Radial Can - SMD, 100 µF, 35 V, FC 系列, 1000 hours @ 105°C

艾睿:
Manufactured from Panasonic, this electrolytic EEE-FC1V101P aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 10.2 mm tall with a diameter of 10 mm. It has a tolerance of 20%. Its leakage current is 35@2Min μA. Its capacitance value is 100uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; 35V 100uF G Case Fc SMT

Chip1Stop:
Cap Aluminum 100uF 35V 20% 10 X 10.2mm SMD 670mA 1000 hr Embossed T/R

Verical:
Cap 100uF 35VDC 20% 10 X 10.2mm SMD 670mA 1000 hr Embossed T/R

儒卓力:
**V-FC 100uF 35V 20% 10x10 **
