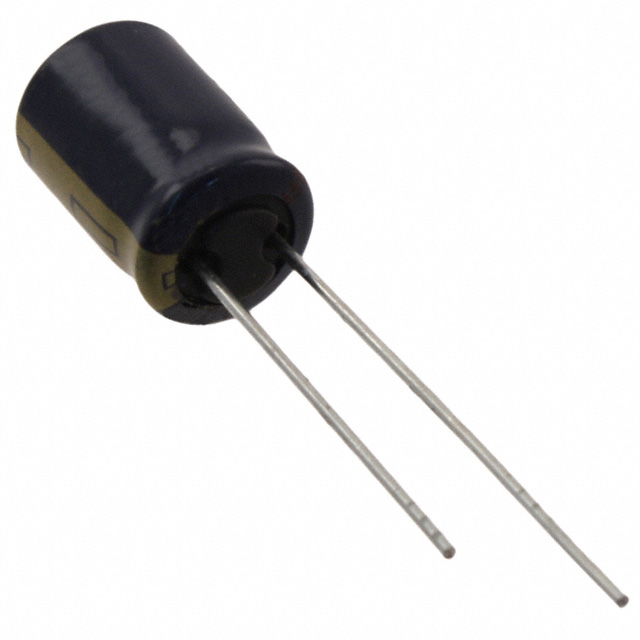

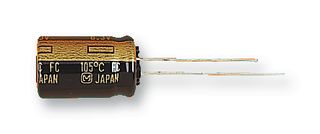

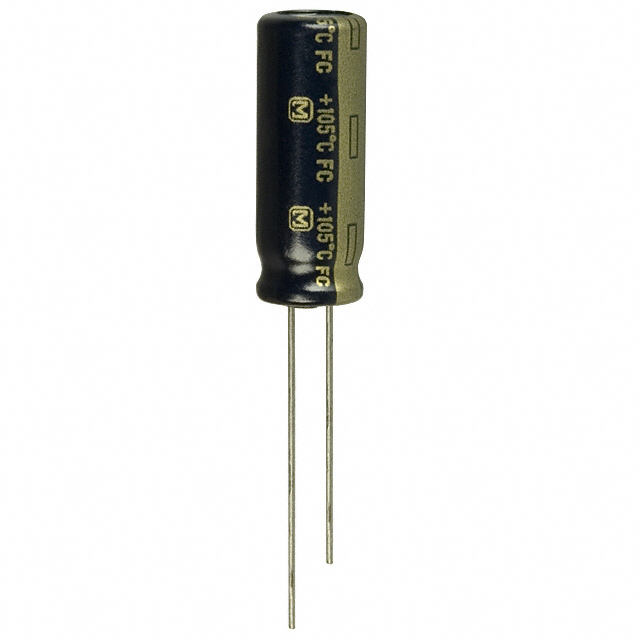

PANASONIC ELECTRONIC COMPONENTS EEU-FC0J122L 铝电解电容, AEC-Q200 FC系列, 1200 µF, ± 20%, 6.3 V, 8 mm, 径向引线
The FC series capacitors are automotive grade type A, radial leaded polarized aluminium electrolytic capacitors. The capacitance value ranges from 2.2µF to 15000µF. These capacitors are perfect solution for applications, which require ultra low ESR, very high ripple current and very long life in small mounting form.
- .
- High reliability
- .
- Automotive grade AEC-Q200 compliant
- .
- Rated voltage range of 6.3VDC to 100VDC
- .
- Tolerance of ±20%
- .
- Endurance of 1000h to 5000h at 105°C
- .
- Operating temperature range -55°C to 105°C
额定电压DC 6.3 V
电容 1200 µF
容差 ±20 %
纹波电流 995 mA
纹波电流高频 604mA @120Hz
纹波电流低频 995mA @100kHz
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 6.3 V
安装方式 Through Hole
引脚数 2
封装 Radial, CAN
引脚间距 3.5 mm
长度 20 mm
高度 20 mm
直径 8.00 mm
封装 Radial, CAN
引脚间距 3.5 mm
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Bulk
寿命（小时） 2000h @105℃
制造应用 Automotive, Industrial, Power Management, Consumer Elect, Industrial, Power Management, Portable Devices, Consumer Electronics, 汽车级, Automotive, 便携式器材, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8532220040
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EEU-FC0J122L Panasonic 松下 | 当前型号 | 当前型号 |
EEU-FC0J122LJ 松下 | 类似代替 | EEU-FC0J122L和EEU-FC0J122LJ的区别 |
EKZE6R3ELL122MH20D 贵弥功 | 功能相似 | EEU-FC0J122L和EKZE6R3ELL122MH20D的区别 |
UPW0J122MPD1TD 尼吉康 | 功能相似 | EEU-FC0J122L和UPW0J122MPD1TD的区别 |
