EEU-FK0J152L

PANASONIC ELECTRONIC COMPONENTS  EEU-FK0J152L  铝电解电容, AEC-Q200 FK系列, 1500 µF, ± 20%, 6.3 V, 8 mm, 径向引线

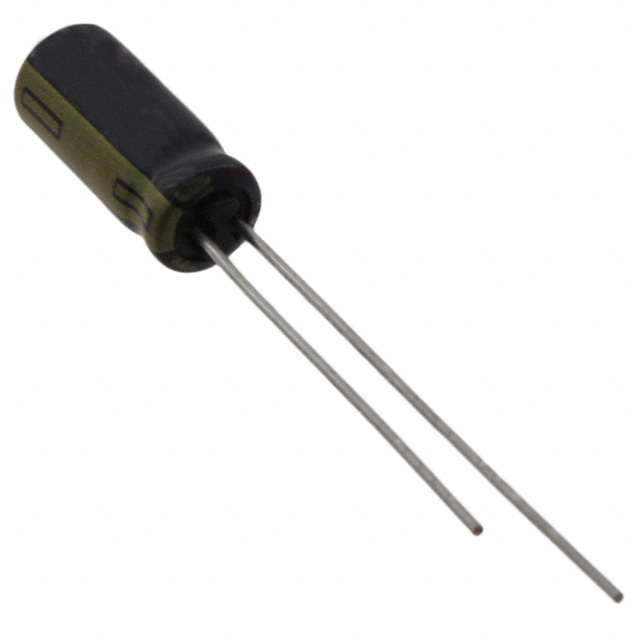

The is a radial leaded Aluminum Electrolytic Capacitor with a PET sleeve sheathing and metal case. This FK series polar capacitor works 3000 to 5000 hours endurance at 105°C.

.

Low impedance

.

-55 to 105°C Category temperature range

得捷:
CAP ALUM 1500UF 20% 6.3V RADIAL

艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Panasonic&s;s electrolytic EEU-FK0J152L aluminum capacitor. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 1500uF. Its leakage current is 94.5@2Min μA. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm and a pitch of 3.5 mm. This product is 20 mm tall with a diameter of 8 mm. The EEU-FK0J152L aluminum electrolytic capacitor has a radial termination style.

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-FK0J152L  Electrolytic Capacitor, 1500 µF, 6.3 V, FK Series, ± 20%, Radial Leaded, 8 mm

Electro Sonic:
Cap Aluminum Lytic 1500uF 6.3V 20% 8 X 20mm Radial 3.5mm 1220mA 3000h 105°C Automotive Bulk
