EEEFK1E471AP

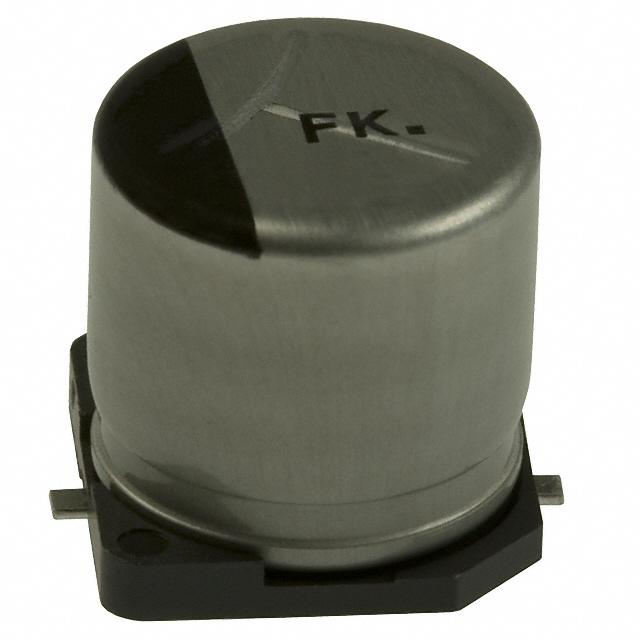

PANASONIC ELECTRONIC COMPONENTS  EEEFK1E471AP  铝电解电容, 表面贴装, AEC-Q200 FK系列, 470 µF, 25 V, Radial Can - SMD, 10 mm

FK 系列卷筒

以满卷形式提供， 的 FK 系列铝电解 器是 FC 系列的微型型号，相比 FC 系列降低了 40-60% 的阻抗值。 这些电解电容器具有长达 5000 小时的长使用寿命，且符合 AEC-Q200 标准，适用于汽车应用。 带有 A

.

后缀的部件号可耐受较高的回流温度，用于延长使用寿命。

欧时:
Panasonic 铝电解电容器 FK SMD 系列 25V dc 470μF 表面安装器件 EEEFK1E471AP, ±20%容差

立创商城:
470uF ±20% 25V

e络盟:
铝电解电容, 表面贴装, Radial Can - SMD, 470 µF, 25 V, FK 系列, 2000 hours @ 105°C

艾睿:
This electrolytic EEE-FK1E471AP aluminum capacitor from Panasonic combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 117.5@2Min μA. It has a tolerance of 20%. This product is 10.2 mm tall with a diameter of 10 mm. Its capacitance value is 470uF.

Allied Electronics:
Capacitor; Alum Electrolytic; Cap 470uF; Tol 20%; Vol-Rtg 25VDC; SMT; Hi-Temp Reflow

安富利:
Cap Aluminum 470uF 25V 20% 10 X 10.2mm SMD 850mA 2000 hr 105°C T/R

Chip1Stop:
Cap Aluminum 470uF 25VDC 20% 10 X 10.2mm SMD 850mA 2000 hr T/R

Verical:
Cap 470uF 25VDC 20% 8 X 10.2mm SMD 850mA 2000 hr T/R

儒卓力:
**V-FK 470uF 25V 20% 10x10 **
