EEUFM1E102

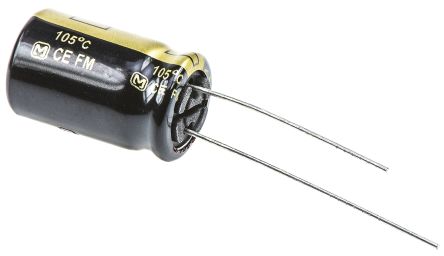

PANASONIC ELECTRONIC COMPONENTS  EEUFM1E102  铝电解电容, FM系列, 1000 µF, ± 20%, 25 V, 12.5 mm, 径向引线

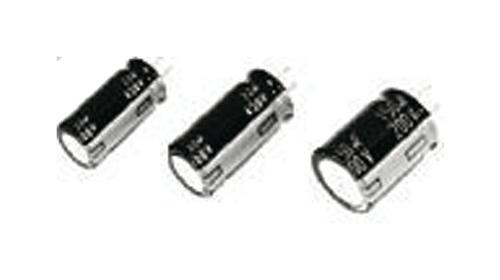

FM 系列 25 V 至 50 V

FM 系列 A 型电解器可提供低阻抗（40% 到 70%，低于 Panasonic FC 系列）可高耐受性。 +105°C 时，耐受性为 2000 小时至 7000 小时（取决于箱尺寸）。

高可靠性

长寿命

高波纹电流

欧时:
### FM 系列 25 V 至 50 VPanasonic FM 系列 A 型电解电容器可提供低阻抗（40% 到 70%，低于 Panasonic FC 系列）可高耐受性。 +105°C 时，耐受性为 2000 小时至 7000 小时（取决于箱尺寸）。高可靠性 长寿命 高波纹电流 ### 应用Panasonic FM 系列 A 型电解电容器凭借其高可靠性，推荐用于工业仪器。 请注意，它们不适合汽车应用。 ### 径向 105°C

立创商城:
1000uF ±20% 25V

艾睿:
The pure aluminum anode on the electrolytic EEU-FM1E102 electrolytic capacitor, designed from Panasonic, is the solution to your signal filtering needs. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 250@2Min μA. It has a tolerance of 20%. This product is 20 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The EEU-FM1E102 aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 1000uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Cap 1000 uF; Tol 20%; Vol-Rtg 25 VDC; Radial

安富利:
Cap Aluminum 1000uF 25VDC 20% 12.5 X 20mm RDL 5mm 2600mA 5000 hr Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 1000uF; 25VDC; ±20%

Verical:
EEUFM1E102

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFM1E102  Aluminium Electrolytic Capacitor, FM Series, 1000 - F, - 20%, 25 V, 12.5 mm, Radial Leaded
