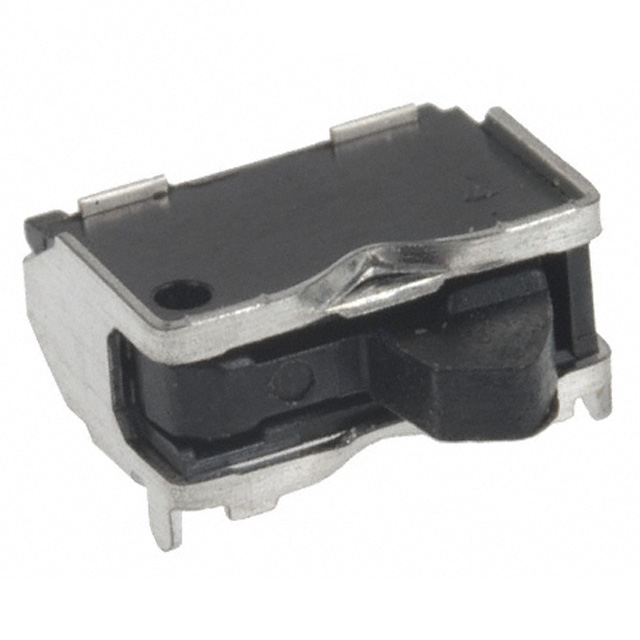

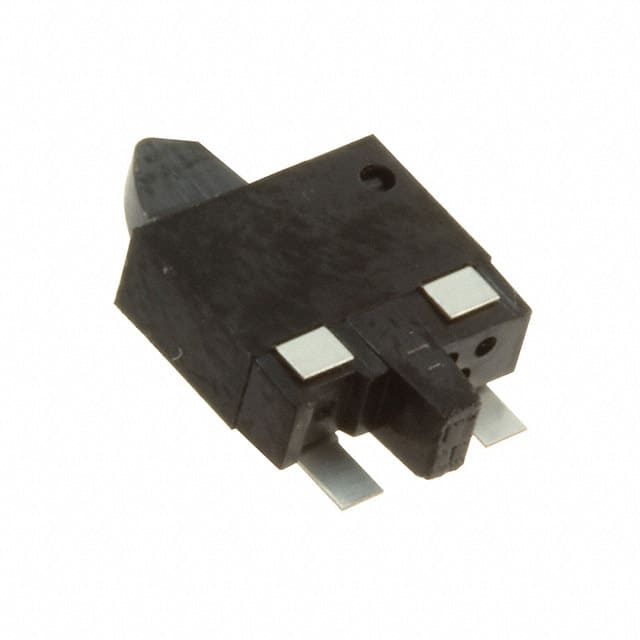

ESE-22 系列 10 mA 单刀单掷 2N SMD 水平 检测器 开关
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R
得捷:
SWITCH DETECTOR SPST-NO 10MA 5V
艾睿:
This ESE-22MH22 switch detector from Panasonic can be used in a wide array of applications for it&s;s use of detecting changes in your environment. This device has a maximum current rating of 0.01 A @ 5VDC. It has a SPST configuration. This lever actuator is 2.15 mm long. This switch detector has a minimum operating temperature of -10 °C and a maximum of 70 °C. It has 2 terminals. The ESE-22MH22 switch detector has a gull wing termination style. The maximum DC voltage rating is 5 VDC. This product is 5.7 mm long, 2.1 mm tall and 8.65 mm deep.
Verical:
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ESE-22MH22 Detector Switch, SPST-NO, Solder, 10 mA, 5 V, 2.1 mm
MASTER:
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R
Online Components:
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R
Electro Sonic:
Switch Detector N.O. SPST Lever Gull Wing 0.01A 5VDC SMD T/R
额定电压DC 5 V
额定电流 10mA DC
方向 Right Angle
触点类型 SPST-NO
额定电流Max 0.01A @5VDC
工作温度Max 70 ℃
工作温度Min -10 ℃
额定电压DC Max 5 V
接触电阻Max 500 mΩ
安装方式 Surface Mount
封装 SMD
长度 5.7 mm
宽度 5.7 mm
高度 2.1 mm
封装 SMD
工作温度 -10℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8536509050
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ESE-22MH22 Panasonic 松下 | 当前型号 | 当前型号 |
ESE-22MH2 松下 | 类似代替 | ESE-22MH22和ESE-22MH2的区别 |
