ECA-2GHG220

Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000H 105℃ Bulk

Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000h 105°C Bulk

立创商城:
22uF ±20% 400V

得捷:
CAP ALUM 22UF 20% 400V RADIAL

艾睿:

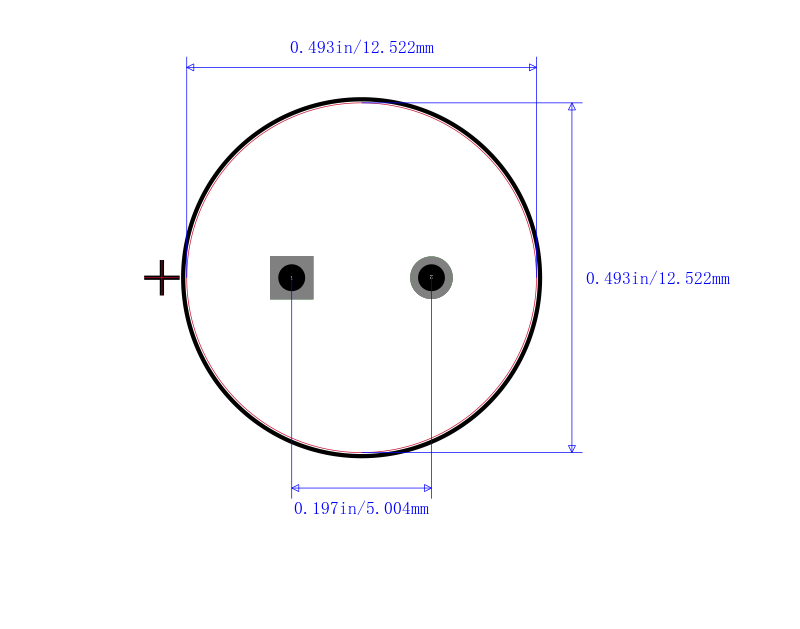

Choose this electrolytic ECA-2GHG220 aluminum capacitor from Panasonic for its relatively high ESR. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 22uF. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 12.5 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 538@2Min μA. The ECA-2GHG220 aluminum electrolytic capacitor has a radial termination style.

Chip1Stop:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000h 105C Bulk

Verical:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000h 105C Automotive Bulk

Newark:
The Panasonic NHG series is automotive grade Type A, radial leaded polarized aluminium electrolytic capacitor. NHG series parts cover broad range of voltage ratings and capacitance values. Typical applications include audio, video and general purpose electronic circuits.

MASTER:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000h 105°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 25mm Radial 5mm 145mA 2000h 105°C Automotive Bulk
