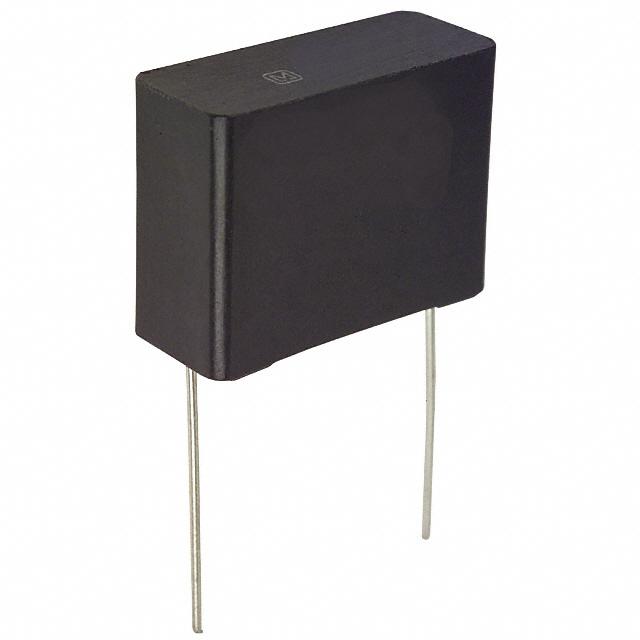

ECQU2A684ML

PANASONIC ELECTRONIC COMPONENTS  ECQU2A684ML  膜电容, ECQUL系列, 0.68 µF, ± 20%, X2, 径向引线, 100 °C

The ECQUL series capacitors are compact, metalized polyester film capacitors. The capacitance value ranges from 0.001µF to 2.2µF. ECQUL series capacitors are approved by UL/CSA and European safety regulation class X2 or class Y2/X2. These capacitors are preferred for applications such as interference suppressors.

.

Rated voltage of 250VAC UL/CSA

.

Available in ±10% and ±20% tolerance

.

UL60384-14, CAN/CSA E60384-14, CSA C22.2 No.8-M1986, EN60384-14, IEC60384-14 approved

.

Flame retardant plastic case and non combustible resin

.

Operating temperature range -40°C to 100°C
