EEUFC1J471

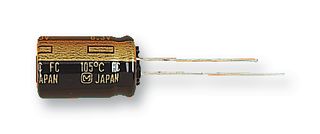

PANASONIC ELECTRONIC COMPONENTS  EEUFC1J471  铝电解电容, AEC-Q200 FC系列, 470 µF, ± 20%, 63 V, 16 mm, 径向引线

FC 系列 330μF - 680μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

欧时:
Panasonic 铝电解电容器 FC RADIAL 系列, 63V dc, 470μF, 通孔安装, EEUFC1J471

立创商城:
470uF 63V

艾睿:
Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic EEU-FC1J471 aluminum capacitor from Panasonic is the one for you! It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 16 mm. Its capacitance value is 470uF. The EEU-FC1J471 aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. Its leakage current is 296.1@2Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Radial Al Electrolytic Cap; 470uF 63V

安富利:
Cap Aluminum 470uF 63V 20% 16 X 20mm Radial 7.5mm 1765mA 5000h 105°C Bulk

TME:
Capacitor: electrolytic; low impedance; THT; 470uF; 63VDC; ±20%

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1J471  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 470 - F, - 20%, 63 V, 16 mm
