EMVY500ADA221MJA0G

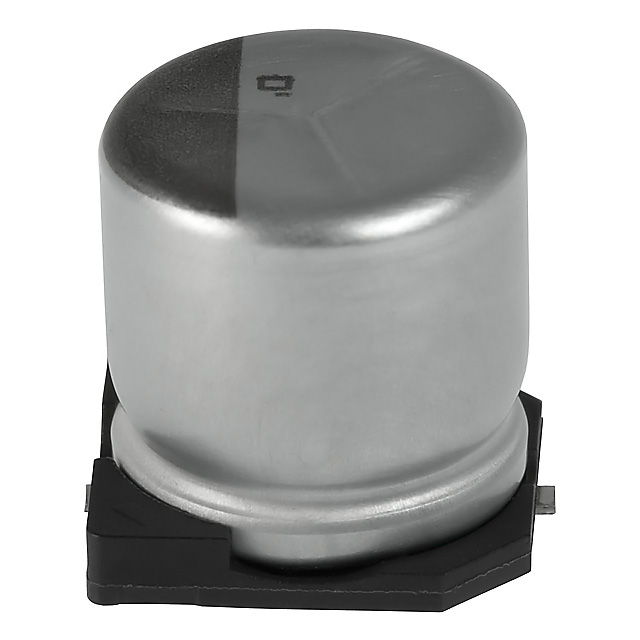

UNITED CHEMI-CON  EMVY500ADA221MJA0G  铝电解电容, 表面贴装, Alchip™, MVY系列, 220 µF, 50 V, Radial Can - SMD, 10 mm, 0.3 ohm

The MVY series Aluminium Electrolytic Surface Mount Capacitor features low impedance and load life of 1000 to 5000 hours at 105°C. It is suitable for digital equipment, especially DC-DC converters.

.

Solvent resistant type except 80 to 100V

.

6.3 to 100VDC Rated voltage range

.

-55 to 105°C Operating temperature range

得捷:
CAP ALUM 220UF 20% 50V SMD

e络盟:
铝电解电容, 表面贴装, Alchip™, Radial Can - SMD, 220 µF, 50 V, 0.3 ohm, MVY系列, 2000 hours @ 105°C

艾睿:
This electrolytic EMVY500ADA221MJA0G aluminum capacitor from United Chemi-con combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 10 mm tall with a diameter of 10 mm. Its capacitance value is 220uF. It has a tolerance of 20%. Its leakage current is 110@2Min μA.

Chip1Stop:
Cap Aluminum Lytic 220uF 50V 20% 10 X 10mm SMD 500mA 2000h 105℃ Cardboard T/R

Verical:
Cap Aluminum Lytic 220uF 50V 20% 10 X 10mm SMD 500mA 2000h 105C Automotive T/R

Newark:
# UNITED CHEMI-CON  EMVY500ADA221MJA0G  SMD Aluminum Electrolytic Capacitor, Alchip™, Radial Can - SMD, 220 µF, 50 V, 0.3 ohm, MVY Series

MASTER:
Cap Aluminum Lytic 220uF 50V 20% 10 X 10mm SMD 500mA 2000h 105°C Automotive T/R

Electro Sonic:
Cap Aluminum Lytic 220uF 50V 20% 10 X 10mm SMD 500mA 2000h 105°C Automotive T/R
