EGPA630ELL681ML25S

GPA 系列微型铝电解电容器GPA 系列微型铝电解电容器是 GXE 系列的精简、低阻抗和高波纹电流版本 确定 150℃ 时使用时间较短，而 125℃ 时寿命较长 指定的 ESR 可承受耐受性测试 适用于高波纹电流汽车应用（直接燃油喷射和电子助力转向系统等） ### 径向，125 °C

GPA 系列微型铝电解器

GPA 系列微型器是 GXE 系列的精简、低阻抗和高波纹电流版本

确定 150℃ 时使用时间较短，而 125℃ 时寿命较长

指定的 ESR 可承受耐受性测试

适用于高波纹电流汽车应用（直接燃油喷射和电子助力转向系统等）

艾睿:

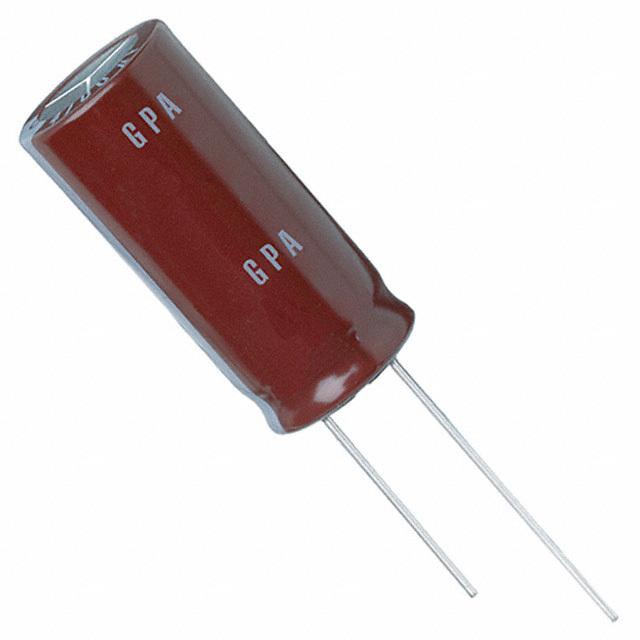

This electrolytic EGPA630ELL681ML25S aluminum capacitor from United Chemi-con has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The EGPA630ELL681ML25S aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 680uF. Its leakage current is 4@1Min μA. This product is 25 mm tall with a diameter of 16 mm.

Chip1Stop:
Cap Aluminum 680uF 63V 20% 16 X 25mm Radial 7.5mm 0.051 Ohm 2030mA 3000h 125 C Bulk

Verical:
Cap Aluminum Lytic 680uF 63V 20% 16 X 25mm Radial 7.5mm 0.051 Ohm 2030mA 3000h 125C Automotive Bulk

MASTER:
Cap Aluminum Lytic 680uF 63V 20% 16 X 25mm Radial 7.5mm 0.061 Ohm 2030mA 3000h 125°C Automotive Bulk

Online Components:
Cap Aluminum Lytic 680uF 63V 20% 16 X 25mm Radial 7.5mm 0.051 Ohm 2030mA 3000h 125°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 680uF 63V 20% 16 X 25mm Radial 7.5mm 0.061 Ohm 2030mA 3000h 125°C Automotive Bulk
