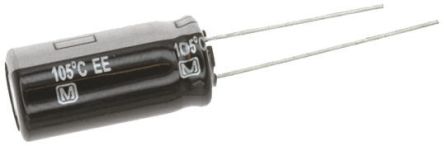

EEUEE2D820S

PANASONIC ELECTRONIC COMPONENTS  EEUEE2D820S  铝电解电容, EE系列, 82 µF, ± 20%, 200 V, 16 mm, 径向引线

EE 系列

EE 系列 A 型电解器的耐受性可达 8000 至 10000 小时（取决于盒体尺寸）。 与 Panasonic ED 系列相比，这些径向电容器可在高频率下提供高出 40% 的波纹电流。

高波纹电流

极佳的耐受性

低阻抗

### 应用

Panasonic EE 系列 A 型电解电容器特凭借其高可靠性，可用于工业仪器。

欧时:
Capacitor Radial EE 82uF 200V hi-ripple

艾睿:
Do you need something that can let through high frequencies and filter out low frequencies? The electrolytic EEU-EE2D820S electrolytic capacitor from Panasonic is for you. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 16 mm. Its leakage current is 108.4@2Min μA. The EEU-EE2D820S aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its capacitance value is 82uF.

安富利:
Cap Aluminum 82uF 200V 20% 16 X 20mm Radial 7.5mm 1460mA 10000h 105°C Bulk

Verical:
Cap Aluminum Lytic 82uF 200V 20% 16 X 20mm Radial 7.5mm 1460mA 10000h 105C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUEE2D820S  Aluminium Electrolytic Capacitor, EE Series, 82 - F, - 20%, 200 V, 16 mm, Radial Leaded
