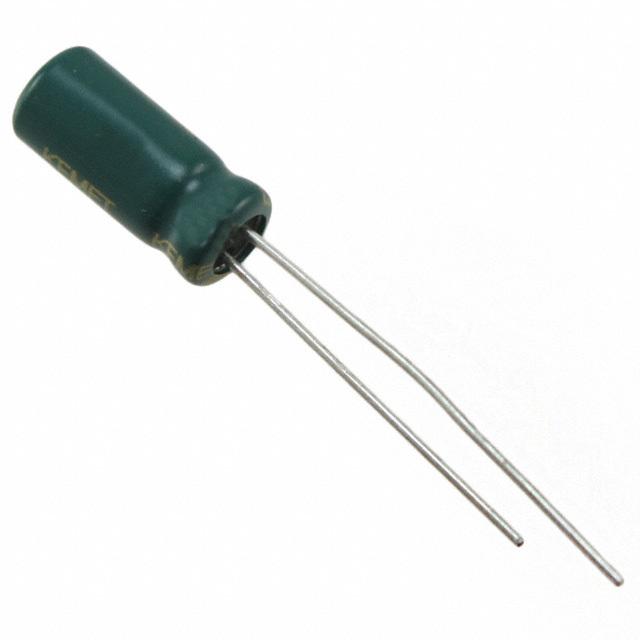

ESC107M016AC3AA

100uF ±20% 16V 140mA Φ5mm

**Kemet ESC Series**

Kemet ESC series single-ended aluminum electrolytic capacitors are designed for high frequency and high reliability applications. The ESC series features a high temperature rating and is suitable for applications such as high frequency switch mode circuits.

立创商城:
100uF ±20% 16V

得捷:
CAP ALUM 100UF 20% 16V RADIAL

艾睿:
Manufactured from Kemet, this electrolytic ESC107M016AC3AA aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 16 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 16@2Min μA. This part has a lead diameter of 0.5 mm and a pitch of 2 mm. The ESC107M016AC3AA aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 100uF. It has a tolerance of 20%. This product is 11 mm tall with a diameter of 5 mm.

Allied Electronics:
Capacitor; Alum. Electrolytic; Radial 100uF 16V 20% 5X11

安富利:
Cap Aluminum 100uF 16V 20% 5 X 11mm Radial Aluminum Cylindrical Can 2mm 140mA 2000 hr 105°C Bulk
