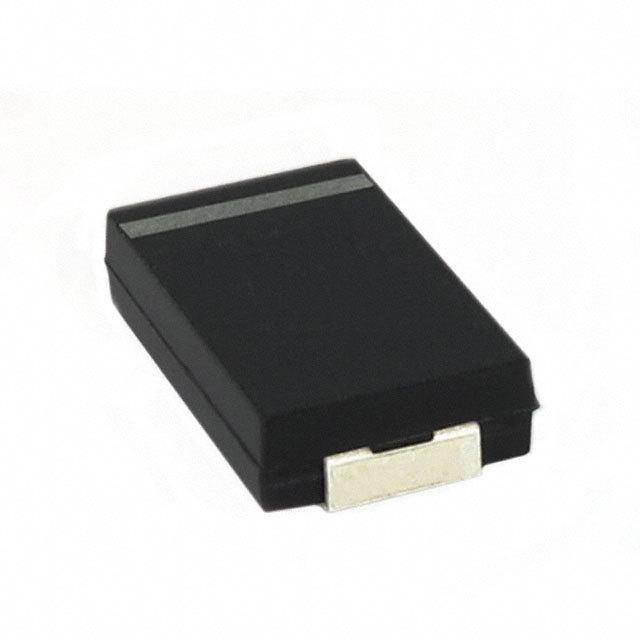

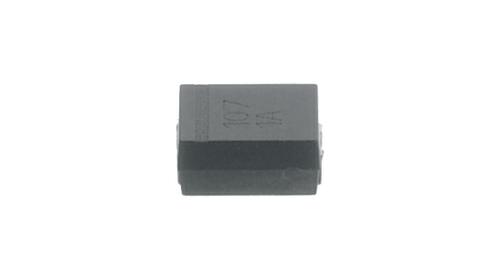

ECAS 系列 12.5 V 22 µF 2917 外壳尺寸 聚合物铝电解电容器
Add Murata"s conductive polymer aluminum solid capacitors within your electronic circuit in order to keep sensitive components safe from the damaging effects of voltage spikes. It can withstand a voltage of 12.5 VDC. It has 2 terminals. This product is 7.3 mm long, 1.9 mm tall and 4.3 mm deep. This conductive polymer aluminum solid capacitor has an operating temperature range of -40 °C to 105 °C. It has a tolerance of 20%.
额定电压DC 12.5 V
电容 22 µF
等效串联电阻ESR 0.03 Ω
容差 ±20 %
产品系列 ECAS
纹波电流 1600 mA
纹波电流低频 1.6A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 12.5 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 1.9 mm
封装 7343
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
寿命(小时) 1000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ECASD41B226M030K00 muRata 村田 | 当前型号 | 当前型号 |
ECASD41A226M028K00 村田 | 功能相似 | ECASD41B226M030K00和ECASD41A226M028K00的区别 |
