EKZE100ELL222MK20S

UNITED CHEMI-CON  EKZE100ELL222MK20S  铝电解电容, 2200uF, 10V

Cap Aluminum Lytic 2200uF 10V 20% 12.5 X 20mm Radial 5mm 2360mA 5000h 105°C Bulk

得捷:
CAP ALUM 2200UF 20% 10V RADIAL

e络盟:
铝电解电容, 2200uF, 10V

艾睿:

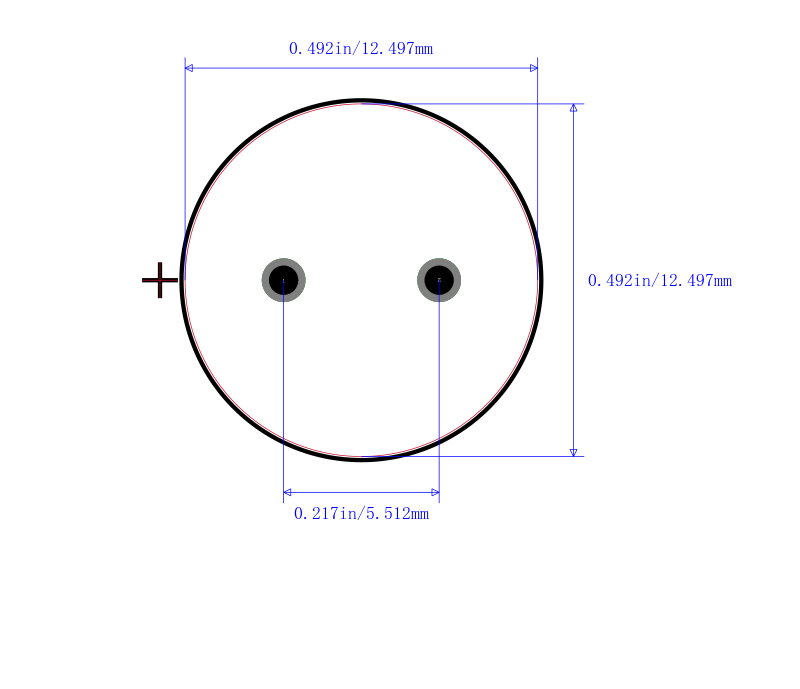

Thanks to United Chemi-con, you&s;ll never miss low-end frequencies with their electrolytic EKZE100ELL222MK20S aluminum capacitor. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its leakage current is 220@2Min μA. It has a tolerance of 20%. The EKZE100ELL222MK20S aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 12.5 mm. Its capacitance value is 2200uF.

Verical:
Cap Aluminum Lytic 2200uF 10V 20% 12.5 X 20mm Radial 5mm 2360mA 5000h 105C Bulk

MASTER:
Cap Aluminum Lytic 2200uF 10V 20% 12.5 X 20mm Radial 5mm 2360mA 5000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 2200uF 10V 20% 12.5 X 20mm Radial 5mm 2360mA 5000h 105°C Bulk
