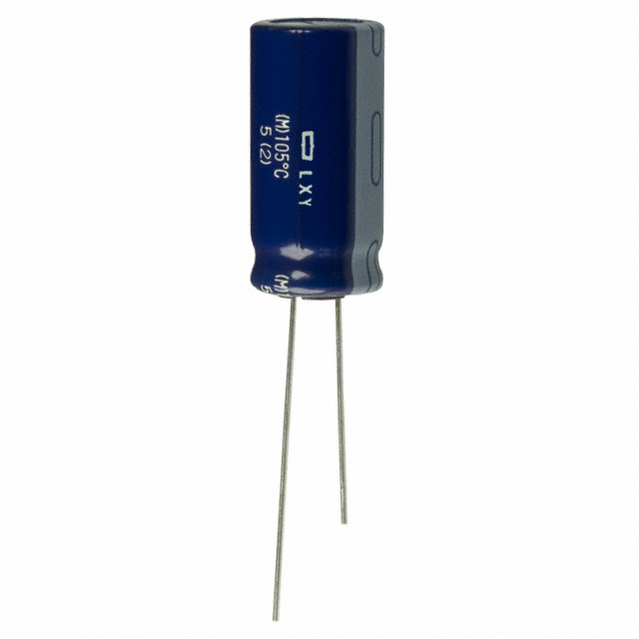

ELXY500ELL471MK25S

Cap Aluminum Lytic 470uF 50V 20% 12.5 X 25mm Radial 5mm 1490mA 7000H 105℃ Automotive Bulk

铝电解器 径向，Can - 105°C 时为 7000 小时

得捷:
CAP ALUM 470UF 20% 50V RADIAL

艾睿:
Manufactured from United Chemi-con, this electrolytic ELXY500ELL471MK25S aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%. The ELXY500ELL471MK25S aluminum electrolytic capacitor has a radial termination style. Its capacitance value is 470uF. Its leakage current is 235@2Min μA. This product is 25 mm tall with a diameter of 12.5 mm.

Verical:
Cap Aluminum Lytic 470uF 50V 20% 12.5 X 25mm Radial 5mm 1490mA 7000h 105C Automotive Bulk

Newark:
# UNITED CHEMI-CON  ELXY500ELL471MK25S  Electrolytic Capacitor, Miniature, 470 µF, 50 V, LXY Series, ± 20%, Radial Leaded, 12.5 mm

MASTER:
Cap Aluminum Lytic 470uF 50V 20% 12.5 X 25mm Radial 5mm 1490mA 7000h 105°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 470uF 50V 20% 12.5 X 25mm Radial 5mm 1490mA 7000h 105°C Automotive Bulk
