EEUED2G470S

105°C

ED 系列

ED 系列 A 型电解器在 +105°C 时耐久性可达 8000 小时至 10000 小时（取决于盒体尺寸）。 在高频率时，这些径向电容器提供高纹波电流。

提供薄型选件，高度为 20 mm

### 应用

Panasonic ED 系列 V 型径向电容器适用于电源输入电路和电子镇流器。

电容容差 % | 20

---|---

工作温度 °C | \- 25 至 +105

105°C 时的预期寿命 | 8000 小时

欧时:
Al Electrolytic Cap ED type A,47uF 400V

艾睿:

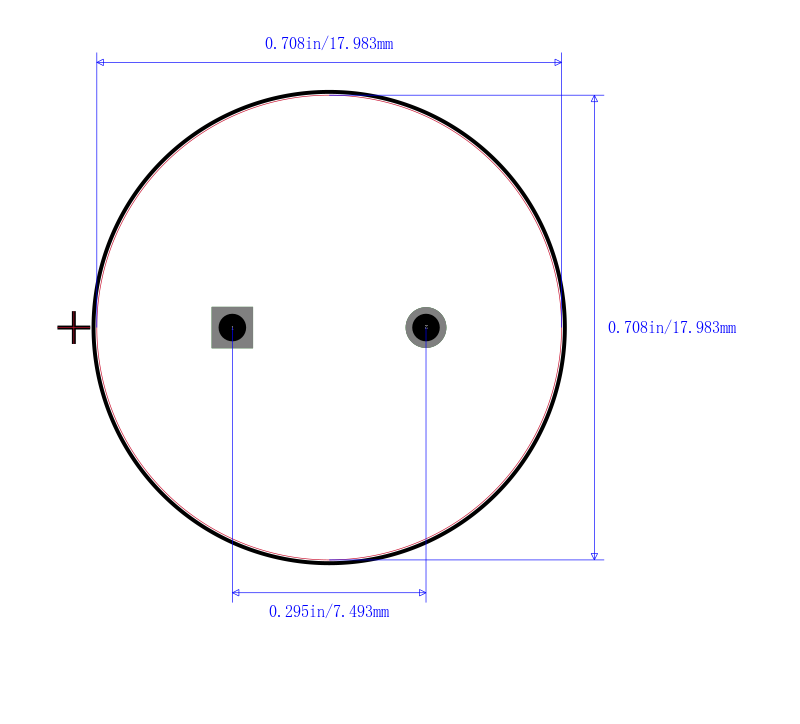

By implementing this electrolytic EEU-ED2G470S aluminum capacitor from Panasonic in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 1138@2Min μA. Its capacitance value is 47uF. The EEU-ED2G470S aluminum electrolytic capacitor has a radial termination style. This product is 20 mm tall with a diameter of 18 mm.

安富利:
Cap Aluminum 47uF 400V 20% 18 X 20mm Radial 7.5mm 840mA 10000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 47uF 400V 20% 18 X 20mm Radial 7.5mm 840mA 10000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 47uF 400V 20% 18 X 20mm Radial 7.5mm 840mA 10000h 105C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUED2G470S  Aluminium Electrolytic Capacitor, ED Series, 47 - F, - 20%, 400 V, 18 mm, Radial Leaded

儒卓力:
**ED 47uF 400V 20% 18x20/7,5 **
