EEUEE2D101S

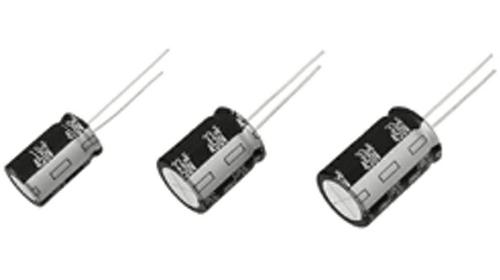

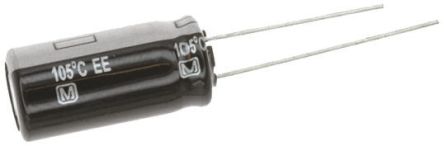

EE 系列Panasonic EE 系列 A 型电解电容器的耐受性可达 8000 至 10000 小时（取决于盒体尺寸）。 与 Panasonic ED 系列相比，这些径向电容器可在高频率下提供高出 40% 的波纹电流。高波纹电流 极佳的耐受性 低阻抗 ### 应用Panasonic EE 系列 A 型电解电容器特凭借其高可靠性，可用于工业仪器。

EE 系列

EE 系列 A 型电解器的耐受性可达 8000 至 10000 小时（取决于盒体尺寸）。 与 Panasonic ED 系列相比，这些径向电容器可在高频率下提供高出 40% 的波纹电流。

高波纹电流

极佳的耐受性

低阻抗

欧时:
Capacitor Radial EE 100uF 200V Hi-Ripple

艾睿:

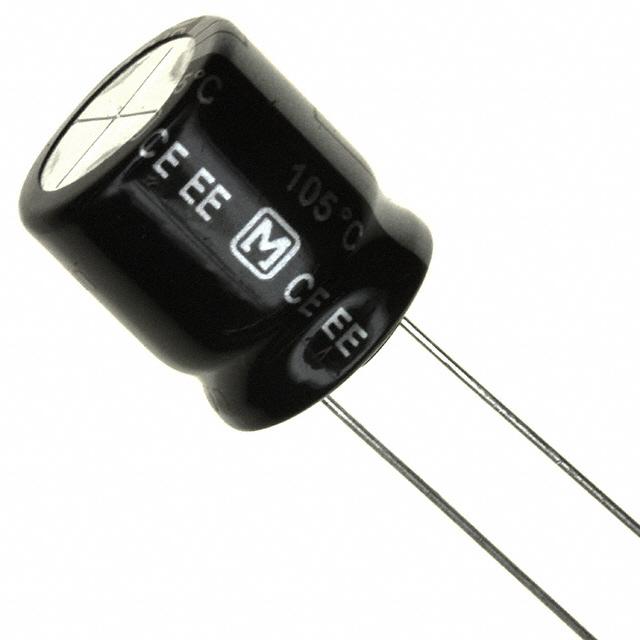

Who knew generating high heat for a given current level would be this easy? Pick up this unique electrolytic EEU-EE2D101S aluminum capacitor from Panasonic for its relatively high ESR! It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. Its capacitance value is 100uF. The EEU-EE2D101S aluminum electrolytic capacitor has a radial termination style. Its leakage current is 130@2Min μA. This product is 20 mm tall with a diameter of 18 mm.

安富利:
Cap Aluminum 100uF 200V 20% 18 X 20mm Radial 7.5mm 1665mA 10000 hr 105°C Bulk

Newark:
Aluminium Electrolytic Capacitor, EE Series, 100 - F, - 20%, 200 V, 18 mm, Radial Leaded
