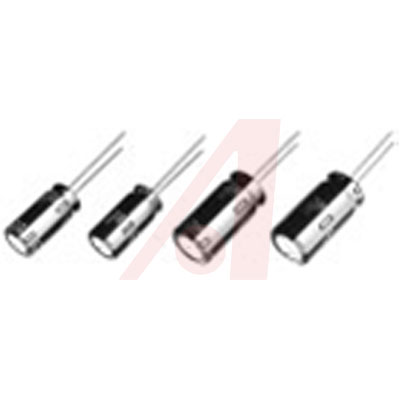

EEUFC1V182

FC 系列 1800μF - 15000μFPanasonic FC 系列 A 型电解电容器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。符合 AEC-Q200 径向引线型 低等效串联电阻 结构小型 高可靠性 低阻抗 高波纹电流 ### 应用Panasonic FC A 型电解电容器符合 AEC-Q200 规格，适用于汽车应用。 高可靠性还使这些电解质电容器特别适用于工业仪器应用。

FC 系列 1800μF - 15000μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

欧时:
FC radial elec cap,1800uF 35V

艾睿:
Since the anode is made out of pure aluminum, you&s;ll be able to filter lower frequencies with ease using Panasonic&s;s electrolytic EEU-FC1V182 aluminum capacitor. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. It has a tolerance of 20%. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. The EEU-FC1V182 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 630@2Min μA. This product is 25 mm tall with a diameter of 16 mm. Its capacitance value is 1800uF.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Radial Al Electrolytic Cap; 1800uF 35V

安富利:
Cap Aluminum 1800uF 35V 20% 16 X 25mm Radial 7.5mm 2555mA 5000 hr 105°C Bulk

Chip1Stop:
Cap Aluminum 1800uF 35V 20% 16 X 25mm Radial 7.5mm 2555mA 5000h 105 C Bulk

Verical:
Cap 1800uF 35VDC 20% 16 X 25mm RDL 7.5mm 2555mA 5000 hr Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1V182  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 1800 - F, - 20%, 35 V, 16 mm
