EMVA6R3ADA221MF55G

MVA Series### VS、UR、WX 系列 85°C

220 µF 6.3 V 铝电解器 径向，Can - SMD - 85°C 时为 2000 小时

得捷:
CAP ALUM 220UF 20% 6.3V SMD

欧时:
Nippon Chemi-Con 铝电解电容器 MVA 系列 6.3V dc 220μF 表面安装器件 EMVA6R3ADA221MF55G, ±20%容差

艾睿:

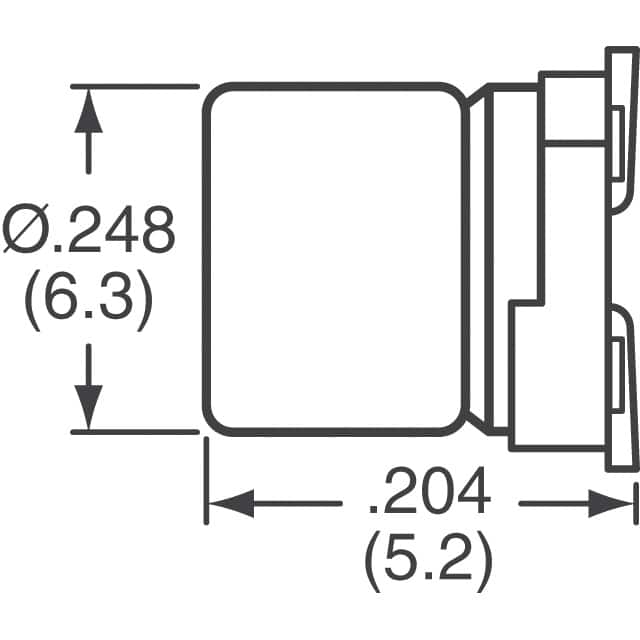

Using this electrolytic EMVA6R3ADA221MF55G aluminum capacitor from United Chemi-con in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. It has a tolerance of 20%. Its capacitance value is 220uF. This product is 5.2 mm tall with a diameter of 6.3 mm. Its leakage current is 13.86@2Min μA.

Verical:
Cap Aluminum Lytic 220uF 6.3V 20% 6.3 X 5.2mm SMD 88mA 2000h 85C T/R

Newark:
# UNITED CHEMI-CON  EMVA6R3ADA221MF55G  SMD Aluminum Electrolytic Capacitor, Alchip™, Radial Can - SMD, 220 µF, 6.3 V, MVA Series

MASTER:
Cap Aluminum Lytic 220uF 6.3V 20% 6.3 X 5.2mm SMD 88mA 2000h 85°C T/R

Online Components:
Cap Aluminum Lytic 220uF 6.3V 20% 6.3 X 5.2mm SMD 88mA 2000h 85°C T/R

Electro Sonic:
Cap Aluminum Lytic 220uF 6.3V 20% 6.3 X 5.2mm SMD 88mA 2000h 85°C T/R
