EKXJ251ELL121ML25S

铝电解电容器 - 径向引线型 120uF 250Volts

120 µF 250 V 铝电解器 径向，Can - 105°C 时为 12000 小时

贸泽:
铝电解电容器 - 径向引线型 120uF 250Volts

艾睿:

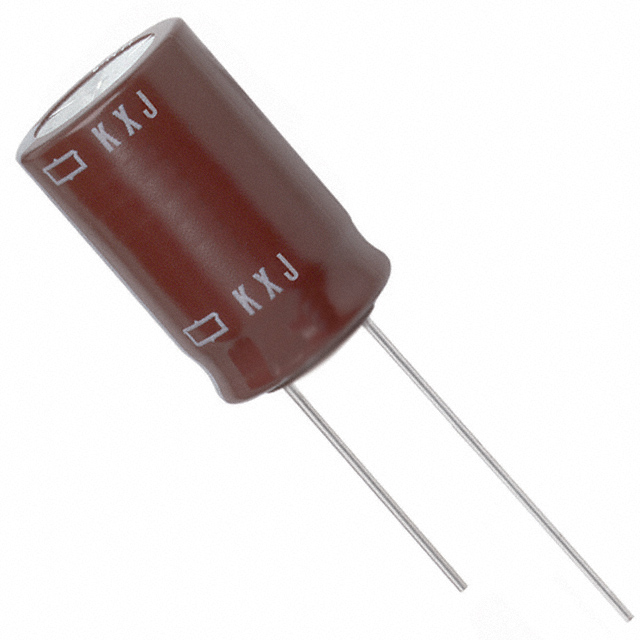

This electrolytic EKXJ251ELL121ML25S aluminum capacitor from United Chemi-con has a relatively high ESR meaning that it easily generates high heat for a given current level. It can withstand a voltage of 250 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The EKXJ251ELL121ML25S aluminum electrolytic capacitor has a radial termination style. Its leakage current is 1300@1Min|625@5Min μA. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 16 mm. Its capacitance value is 120uF.

Chip1Stop:
Cap Aluminum Lytic 120uF 250V 20% 16 X 25mm Radial 7.5mm 755mA 12000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 120uF 250V 20% 16 X 25mm Radial 7.5mm 755mA 12000h 105C Automotive Bulk

MASTER:
Cap Aluminum Lytic 120uF 250V 20% 16 X 25mm Radial 7.5mm 755mA 12000h 105°C Automotive Bulk

Online Components:
Cap Aluminum Lytic 120uF 250V 20% 16 X 25mm Radial 7.5mm 755mA 12000h 105°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 120uF 250V 20% 16 X 25mm Radial 7.5mm 755mA 12000h 105°C Automotive Bulk
