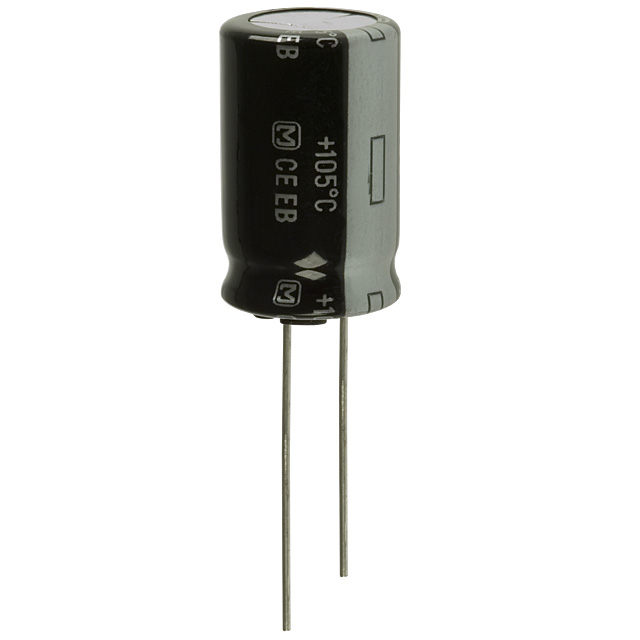

EEU-EB2D151S

PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D151S  铝电解电容, 150UF

150 µF 200 V 铝电解器 径向，Can - 105°C 时为 5000 小时

贸泽:
Aluminum Electrolytic Capacitors - Leaded 150uF 200V

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D151S  铝电解电容, 150UF

艾睿:
Manufactured from Panasonic, this electrolytic EEU-EB2D151S aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 150uF. It has a tolerance of 20%. Its leakage current is 300@2Min μA. This product is 25 mm tall with a diameter of 18 mm. The EEU-EB2D151S aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm.

Verical:
Cap Aluminum Lytic 150uF 200V 20% 18 X 25mm Radial 7.5mm 1280mA 5000h 105C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-EB2D151S  Electrolytic Capacitor, 150 µF, 200 V, EB Series, ± 20%, Radial Leaded, 18 mm

MASTER:
Cap Aluminum Lytic 150uF 200V 20% 18 X 25mm Radial 7.5mm 1280mA 5000h 105°C Bulk

Online Components:
Cap Aluminum Lytic 150uF 200V 20% 18 X 25mm Radial 7.5mm 1280mA 5000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 150uF 200V 20% 18 X 25mm Radial 7.5mm 1280mA 5000h 105°C Bulk
