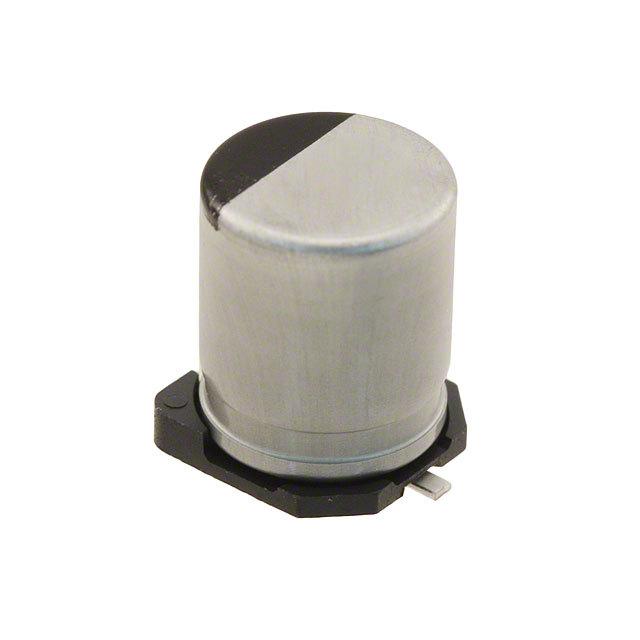

Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03Ω 1250mA 4000H 125℃ Automotive T/R
68 µF 50 V 铝聚合物器 径向，Can - SMD 30 毫欧 125°C 时为 4000 小时
得捷:
CAP ALUM POLY HYB 68UF 50V SMD
贸泽:
Aluminum Organic Polymer Capacitors 68uF 50volt AEC-Q200
艾睿:
Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03 Ohm 1250mA 4000h 125°C Automotive T/R
Verical:
Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03 Ohm 1250mA 4000h 125C Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS EEH-ZC1H680P SMD Aluminum Electrolytic Capacitor, Hybrid SMD, Radial Can - SMD, 68 µF, 50 V, 0.03 ohm, ZC Series
MASTER:
Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03 Ohm 1250mA 4000h 125°C Automotive T/R
Online Components:
Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03 Ohm 1250mA 4000h 125°C Automotive T/R
Electro Sonic:
Cap Aluminum Polymer Hybrid 68uF 50VDC 20% 8 X 10.2mm SMD 0.03 Ohm 1250mA 4000h 125°C Automotive T/R
额定电压DC 50 V
电容 68 µF
等效串联电阻ESR 0.03 Ω
容差 ±20 %
纹波电流 1.25 A
纹波电流高频 187.5 mA
纹波电流低频 1.25 A
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
封装 SMD
长度 10.2 mm
高度 10.2 mm
直径 8.00 mm
封装 SMD
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
寿命（小时） 4000 h
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532220040
