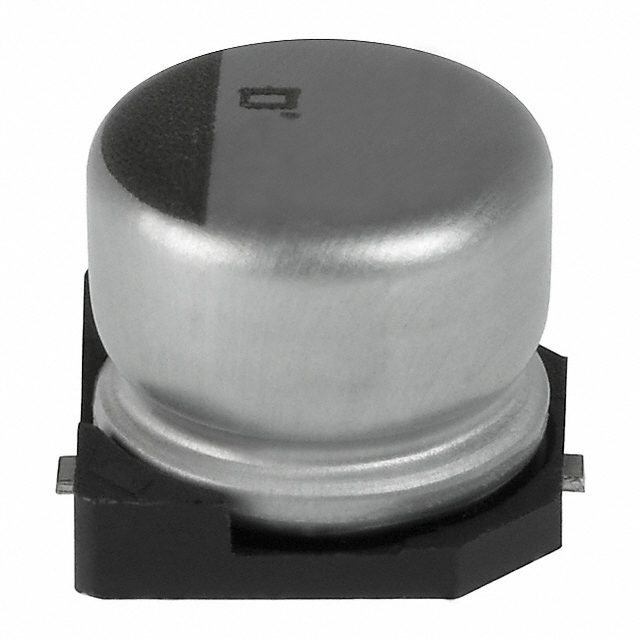

Cap Aluminum Lytic 33uF 25V 20% 6.3 X 5.2mm SMD 140mA 1000H 105℃ Automotive T/R
This electrolytic aluminum capacitor from United Chemi-con combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 8.25@2Min μA. It has a tolerance of 20%. Its capacitance value is 33uF. This product is 5.2 mm tall with a diameter of 6.3 mm.
额定电压DC 25.0 V
电容 33 µF
等效串联电阻ESR 1.00 Ω
容差 ±20 %
纹波电流 140 mA
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 SMD
长度 5.20 mm
宽度 6.60 mm
高度 5.2 mm
直径 6.30 mm
封装 SMD
介质材料 Aluminum Electrolytic
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
寿命（小时） 1000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
HTS代码 8532220020
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
EMVY250ADA330MF55G Chemi-Con 贵弥功 | 当前型号 | 当前型号 |
MVY25VC33RMF55TP 贵弥功 | 类似代替 | EMVY250ADA330MF55G和MVY25VC33RMF55TP的区别 |
EMVY350ADA330MF55G 贵弥功 | 功能相似 | EMVY250ADA330MF55G和EMVY350ADA330MF55G的区别 |
