1mF ±20% 100V 1.5A Φ25mm
**Kemet ELG Series**

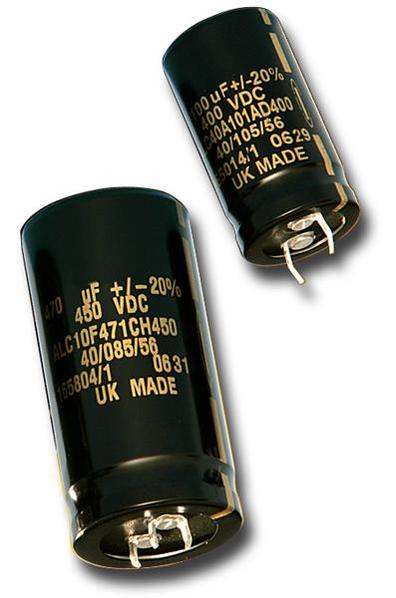

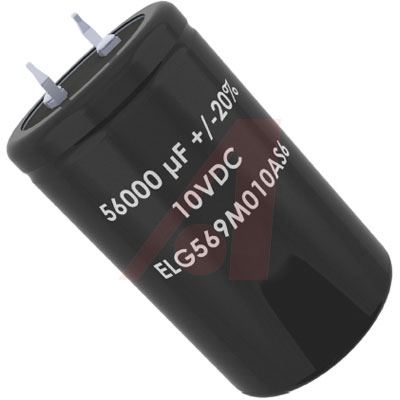

Kemet ELG series aluminum electrolytic snap-in capacitors are designed with snap-lock terminals for printed circuit board mounting. The ELG series has an aluminum case with an insulated sleeve and safety vent at the bottom. Typical applications include general purpose power electronics, UPS, SMPS and battery chargers.
得捷:
CAP ALUM 1000UF 20% 100V SNAP
立创商城:
1000uF ±20% 100V
艾睿:
Cap Aluminum Lytic 1000uF 100V 20% 25 X 30mm Snap-In 10mm 1500mA 2000h 105°C Bulk
Allied Electronics:
Capacitor; Al Electrolytic; Cap 1000 uF; Tol 20%; Vol-Rtg 100 VDC; Snap-In; 25x30mm
安富利:
Cap Aluminum 1000uF 100V 20% 25 X 30mm 10mm 1500mA 2000 hr 105°C Bulk
Verical:
Cap Aluminum Lytic 1000uF 100V 20% 25 X 30mm Snap-In 10mm 1500mA 2000h 105C Bulk
额定电压DC 100 V
电容 1 mF
容差 ±20 %
产品系列 ELG
测试频率 120Hz
纹波电流 1500 mA
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 100 V
安装方式 Through Hole
引脚数 2
封装 直插,D25xL32mm
长度 30 mm
高度 30 mm
直径 Φ25mm
封装 直插,D25xL32mm
工作温度 -40℃ ~ 105℃
产品生命周期 Active
包装方式 Bulk
寿命（小时） 2000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ELG108M100AR2AA KEMET Corporation 基美 | 当前型号 | 当前型号 |
381LX102M100J022 Cornell Dubilier ElectronicsCDE | 功能相似 | ELG108M100AR2AA和381LX102M100J022的区别 |
ECOS2AA102CA 松下 | 功能相似 | ELG108M100AR2AA和ECOS2AA102CA的区别 |
NRLMW102M100V25X30F NIC | 功能相似 | ELG108M100AR2AA和NRLMW102M100V25X30F的区别 |
