ESD保护二极管
Description
The is a bidirectional single line TVS diode designed to protect the datalines or other I/O ports against ESD transients. The device is ideal for applications where both reduced line capacitance and board space saving are required.
Features
■ Single line low capacitance Transil diode
■ Bidirectional ESD protection
■ ESD protection > 30 kV IEC 61000-4-2 contact discharge
■ Breakdown Voltage VBR = 6.1 V min.
■ Low diode capacitance 22 pF typ. at 0 V
■ Low leakage current: < 100 nA at 3 V
■ Very small PCB area: 0.6 mm2
■ Leadfree package
Benefits
■ High ESD protection level
■ High integration
■ Suitable for high density boards
Complies with the following standards
■ IEC 61000-4-2 level 4
– 15 kV air discharge
– 8 kV contact discharge
■ MIL STD 883G - Method 3015-7: class 3B
– Human body model
Applications
Where transient overvoltage protection in ESD sensitive equipment is required, such as:
■ Computers
■ Printers
■ Communication systems
■ Cellular phone handsets and accessories
■ Video equipment
额定电压DC 6.10 V
电容 22 pF
额定功率 140 W
击穿电压 6.1 V
通道数 1
脉冲峰值功率 140 W
最小反向击穿电压 6.1 V
工作温度Max 125 ℃
工作温度Min 40 ℃
安装方式 Surface Mount
引脚数 2

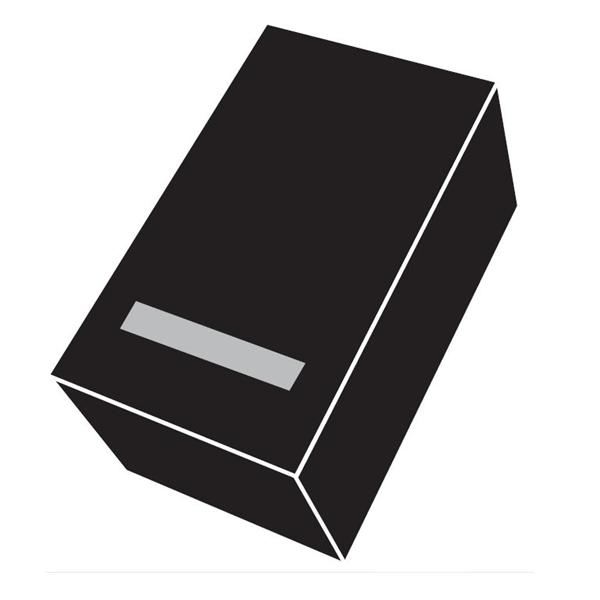

封装 SOD-882
长度 1.00 mm
宽度 600 µm
高度 500 µm
封装 SOD-882
工作温度 -40℃ ~ 125℃ TJ
产品生命周期 Obsolete
包装方式 Tape & Reel TR
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ESDALC6V1-1BM2 ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
ESDALC6V1-1BT2 意法半导体 | 类似代替 | ESDALC6V1-1BM2和ESDALC6V1-1BT2的区别 |
ESDALC6V1-1BU2 意法半导体 | 功能相似 | ESDALC6V1-1BM2和ESDALC6V1-1BU2的区别 |
