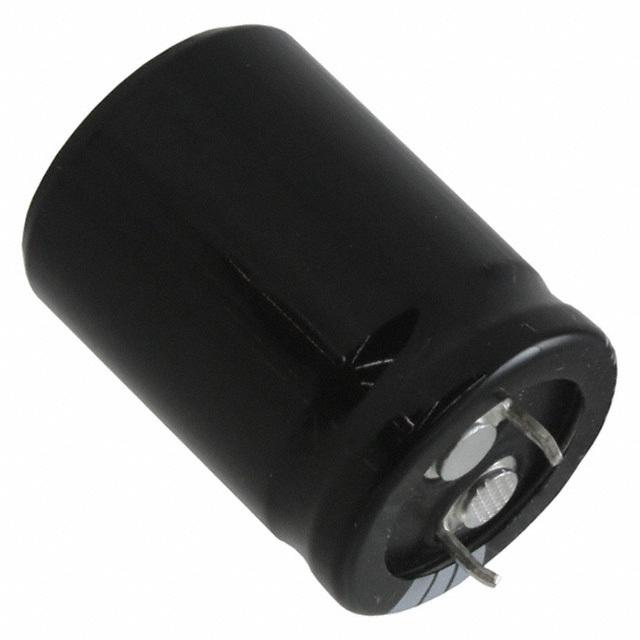

ESMH630VSN222MP30T

2.2mF ±20% 63V 2310mA Φ22mm

2200µF 63V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 113mOhm @ 120Hz 2000 Hrs @ 85°C

得捷:
CAP ALUM 2200UF 20% 63V SNAP

艾睿:
Using the aluminum anode based electrolytic ESMH630VSN222MP30T electrolytic capacitor, developed by United Chemi-con, you can filter out lower signal frequencies. It can withstand a voltage of 63 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. This part has a lead diameter of 1 mm and a pitch of 10 mm. The ESMH630VSN222MP30T aluminum electrolytic capacitor has a snap-in termination style. This product is 30 mm tall with a diameter of 22 mm. Its capacitance value is 2200uF. Its leakage current is 2772@5Min μA. It has a tolerance of 20%.

Electro Sonic:
Cap Aluminum Lytic 2200uF 63V 20% 22 X 30mm Snap-In 10mm 0.113 Ohm 2310mA 2000h 85°C
