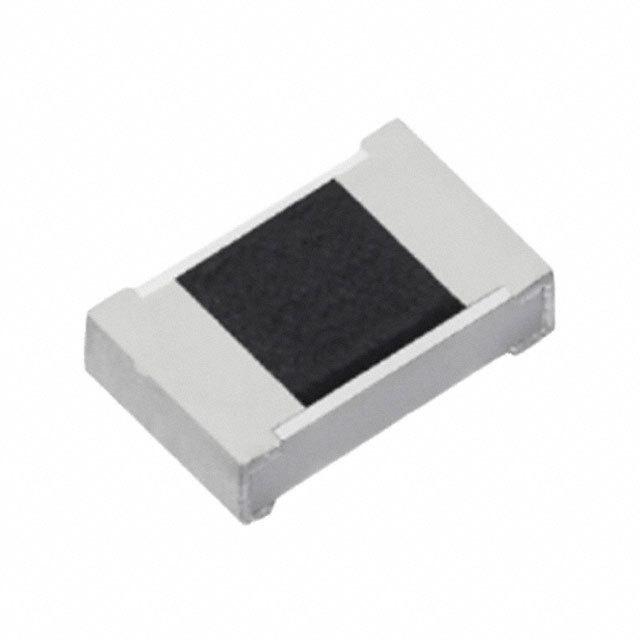

PANASONIC ELECTRONIC COMPONENTS ERJ-3GEYJ183V SMD Chip Resistor, Thick Film, 18KΩ, 75V, 0603 [1608 Metric], 0.1W1/10W, ± 5%, ERJ3G Series
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/°C Molded SMD Automotive T/R
得捷:
RES SMD 18K OHM 5% 1/10W 0603
贸泽:
Thick Film Resistors - SMD 0603 18Kohms 5% AEC-Q200
e络盟:
PANASONIC ELECTRONIC COMPONENTS ERJ-3GEYJ183V THICK FILM CHIP RESISTOR, 18 KOHM, 0.1W,
艾睿:
The ERJ-3GEYJ183V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This durable part has a power rating of 0.1 1/10 W. This product has a resistance value of 18K Ohm. Its temperature coefficient is ±200 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. It has a tolerance of 5%. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C.
Chip1Stop:
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/C Molded SMD Automotive Punched T/R
Verical:
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/C Pad SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-3GEYJ183V SMD Chip Resistor, Thick Film, 18 kohm, 75 V, 0603 [1608 Metric], 100 mW, ± 5%, ERJ3G Series
MASTER:
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/°C Molded SMD Automotive T/R
Electro Sonic:
Res Thick Film 0603 18K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±5 %
额定功率 0.1 W
电阻 18 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-3GEYJ183V Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-3EKF1802V 松下 | 类似代替 | ERJ-3GEYJ183V和ERJ-3EKF1802V的区别 |
CR0603-JW-183ELF 伯恩斯 | 类似代替 | ERJ-3GEYJ183V和CR0603-JW-183ELF的区别 |
MCR03EZPJ183 罗姆半导体 | 功能相似 | ERJ-3GEYJ183V和MCR03EZPJ183的区别 |
