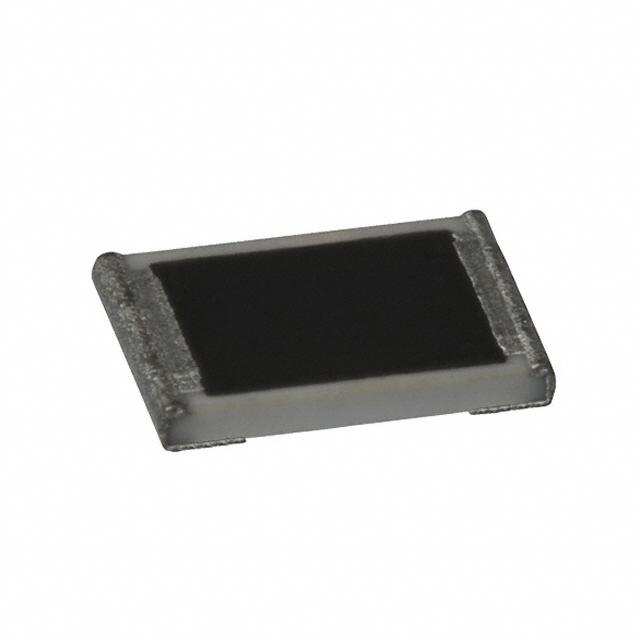

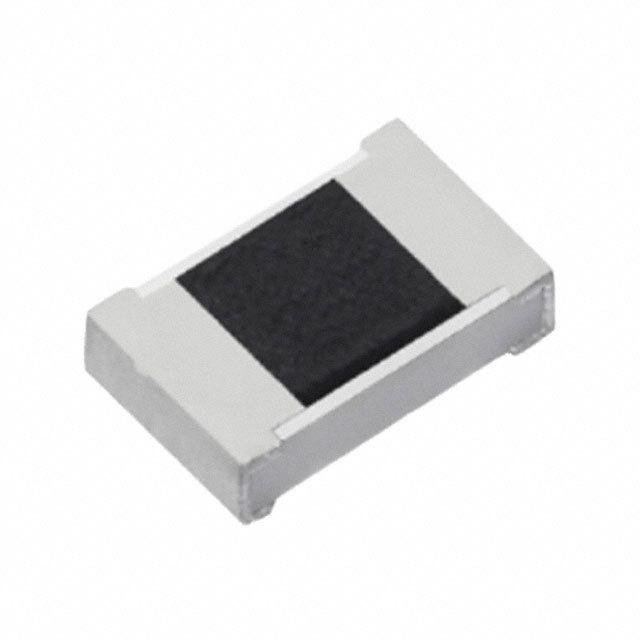

厚膜片式电阻器 Thick Film Chip Resistors
200 kOhms ±5% 0.1W,1/10W 芯片 0603(1608 公制) 汽车级AEC-Q200 厚膜
得捷:
RES SMD 200K OHM 5% 1/10W 0603
贸泽:
厚膜电阻器 - SMD 0603 200Kohms 5% AEC-Q200
艾睿:
The ERJ-3GEYJ204V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This part has a power rating of 0.1 1/10 W. This product has a resistance value of 200K Ohm. Its temperature coefficient is ±200 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This device is made with thick film technology.
Verical:
Res Thick Film 0603 200K Ohm 5% 1/10W �200ppm/C Molded SMD Punched Carrier T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-3GEYJ204V SMD Chip Resistor, Thick Film, 200 kohm, 75 V, 0603 [1608 Metric], 100 mW, ± 5%, ERJ3G Series
MASTER:
Res Thick Film 0603 200K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0603 200K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0603 200K Ohm 5% 0.1W1/10W ±200ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±5 %
额定功率 0.1 W
电阻 200 kΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V

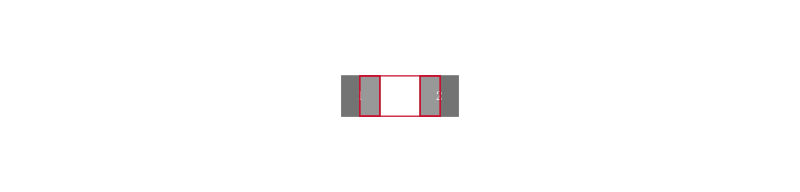

安装方式 Surface Mount
封装公制 1608
封装 0603

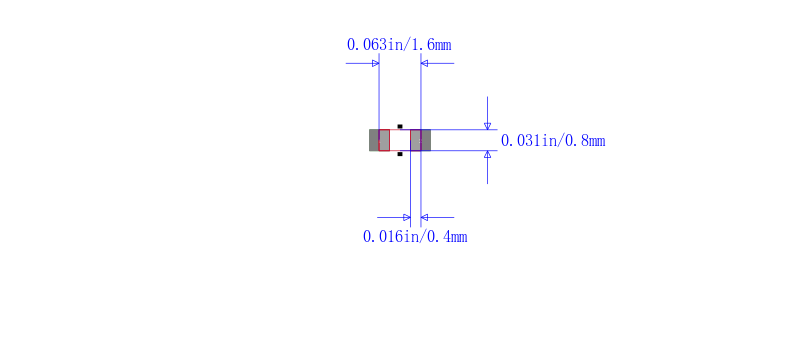

长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±200 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-3GEYJ204V Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-3EKF2003V 松下 | 类似代替 | ERJ-3GEYJ204V和ERJ-3EKF2003V的区别 |
MCR03EZPJ204 罗姆半导体 | 功能相似 | ERJ-3GEYJ204V和MCR03EZPJ204的区别 |
RK73B1JTTD204J KOA Speer | 功能相似 | ERJ-3GEYJ204V和RK73B1JTTD204J的区别 |
