PANASONIC ELECTRONIC COMPONENTS ERJ-3EKF1803V SMD Chip Resistor, Thick Film, 180KΩ, 75V, 0603 [1608 Metric], 0.1W1/10W, ± 1%, ERJ3E Series
Res Thick Film 0603 180K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
得捷:
RES SMD 180K OHM 1% 1/10W 0603
艾睿:

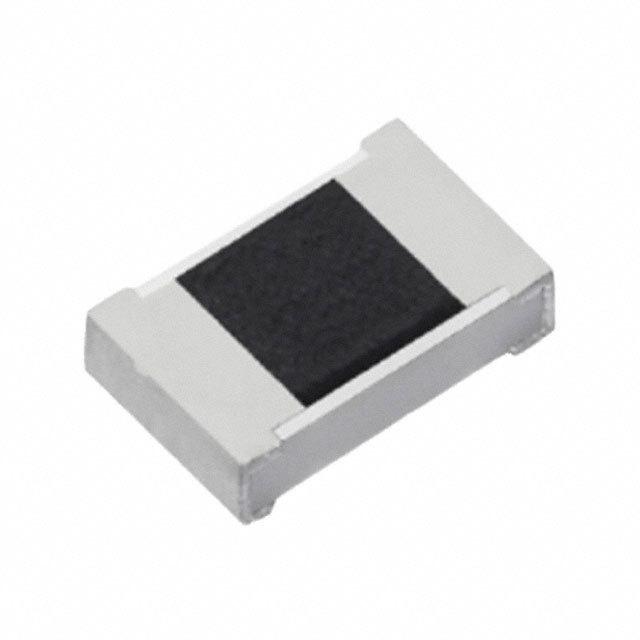

The ERJ-3EKF1803V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 180K Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%.
Verical:
Res Thick Film 0603 180K Ohm 1% 0.1W1/10W ±100ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-3EKF1803V SMD Chip Resistor, Thick Film, 180 kohm, 75 V, 0603 [1608 Metric], 100 mW, ± 1%, ERJ3E Series
MASTER:
Res Thick Film 0603 180K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0603 180K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0603 180K Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±1 %
额定功率 0.1 W
电阻 180 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-3EKF1803V Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-3GEYJ184V 松下 | 类似代替 | ERJ-3EKF1803V和ERJ-3GEYJ184V的区别 |
RMCF0603FT180K Stackpole Electronics | 类似代替 | ERJ-3EKF1803V和RMCF0603FT180K的区别 |
MR06X1803FTL 台湾华科 | 类似代替 | ERJ-3EKF1803V和MR06X1803FTL的区别 |
