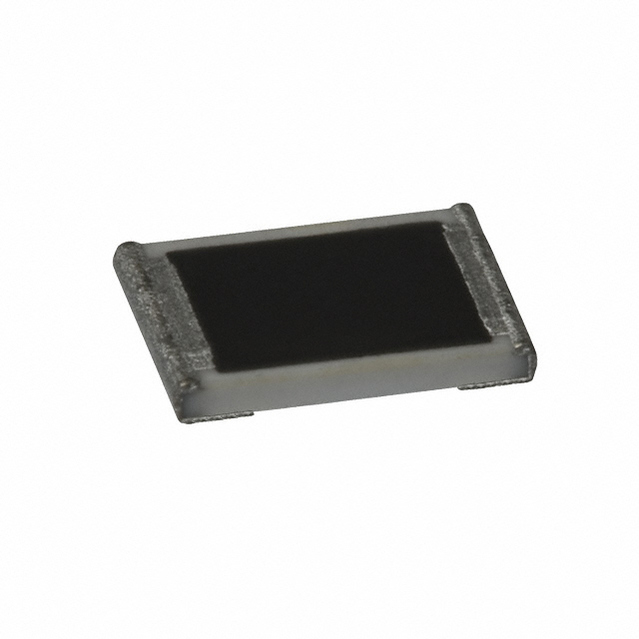

PANASONIC ELECTRONIC COMPONENTS ERJ-2RKF1200X 厚膜电阻, 120Ω, 100mW, ±1%
120 Ohms ±1% 0.1W,1/10W 芯片 0402(1005 公制) 汽车级AEC-Q200 厚膜
得捷:
RES SMD 120 OHM 1% 1/10W 0402
贸泽:
Thick Film Resistors - SMD 0402 120ohms 1% AEC-Q200
e络盟:
PANASONIC ELECTRONIC COMPONENTS ERJ-2RKF1200X 厚膜电阻, 120Ω, 100mW, ±1%
艾睿:
The ERJ-2RKF1200X fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 120 Ohm. This part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. It has a tolerance of 1%. This product is 1 mm long, 0.35 mm tall and 0.5 mm deep.
Chip1Stop:
Res Thick Film 0402 120 Ohm 1% 0.1W1/10W ±100ppm/C Molded SMD Automotive Punched T/R
Verical:
Res Thick Film 0402 120 Ohm 1% 0.1W1/10W ±100ppm/C Pad SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-2RKF1200X SMD Chip Resistor, Thick Film, 120 ohm, 50 V, 0402 [1005 Metric], 100 mW, ± 1%, ERJ2R Series
MASTER:
Res Thick Film 0402 120 Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0402 120 Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0402 120 Ohm 1% 0.1W1/10W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 50.0 V
容差 ±1 %
额定功率 0.1 W
电阻 120 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.35 mm
封装公制 1005
封装 0402
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-2RKF1200X Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-2GEJ121X 松下 | 类似代替 | ERJ-2RKF1200X和ERJ-2GEJ121X的区别 |
RC0402FR-07120RL 国巨 | 功能相似 | ERJ-2RKF1200X和RC0402FR-07120RL的区别 |
CRCW0402120RFKED 威世 | 功能相似 | ERJ-2RKF1200X和CRCW0402120RFKED的区别 |
