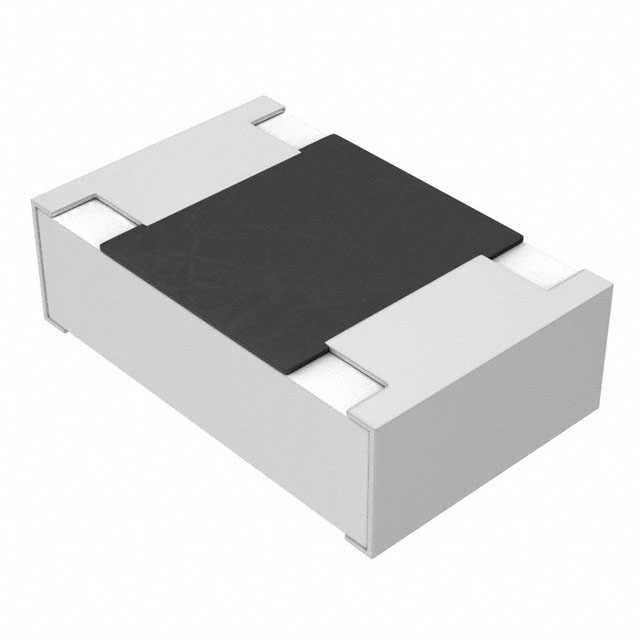

PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF3000V SMD Chip Resistor, Thick Film, 300Ω, 150V, 0805 [2012 Metric], 0.125W1/8W, ± 1%, ERJ6E Series
300 Ohms ±1% 0.125W,1/8W 芯片 0805(2012 公制) 汽车级AEC-Q200 厚膜
得捷:
RES SMD 300 OHM 1% 1/8W 0805
艾睿:
The ERJ-6ENF3000V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 300 Ohm. This part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. This device is made with thick film technology.
Chip1Stop:
Res Thick Film 0805 300 Ohm 1% 0.125W1/8W ±100ppm/C Molded SMD Automotive Punched T/R
Verical:
Res Thick Film 0805 300 Ohm 1% 0.125W1/8W ±100ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF3000V SMD Chip Resistor, Thick Film, 300 ohm, 150 V, 0805 [2012 Metric], 125 mW, ± 1%, ERJ6E Series
MASTER:
Res Thick Film 0805 300 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0805 300 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0805 300 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
电阻 300 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-6ENF3000V Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-6GEYJ301V 松下 | 类似代替 | ERJ-6ENF3000V和ERJ-6GEYJ301V的区别 |
MCR10EZPF3000 罗姆半导体 | 类似代替 | ERJ-6ENF3000V和MCR10EZPF3000的区别 |
CRCW0805300RFKEA 威世 | 功能相似 | ERJ-6ENF3000V和CRCW0805300RFKEA的区别 |
