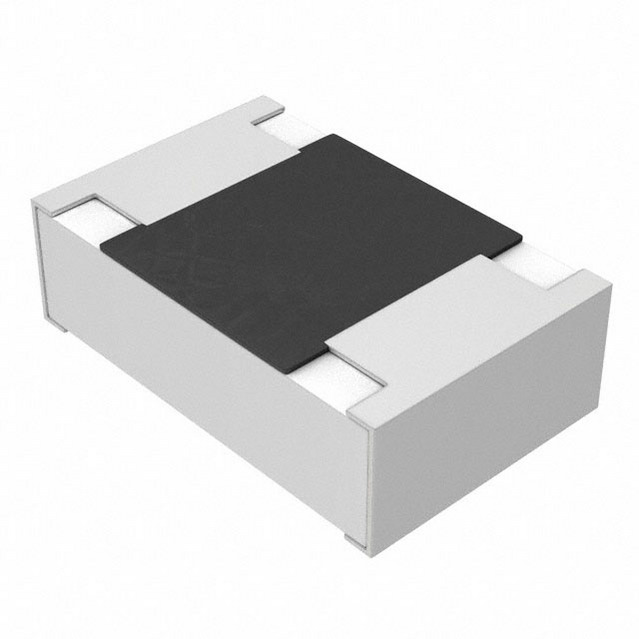

PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF3011V SMD Chip Resistor, Thick Film, 3.01KΩ, 150V, 0805 [2012 Metric], 0.125W1/8W, ± 1%, ERJ6E Series
3.01 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 2012 Metric Automotive AEC-Q200 Thick Film
立创商城:
3.01kΩ ±1% 125mW
得捷:
RES SMD 3.01K OHM 1% 1/8W 0805
贸泽:
Thick Film Resistors - SMD 0805 3.01Kohms 1% AEC-Q200
艾睿:
The ERJ-6ENF3011V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 3.01K Ohm. This part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This device is made with thick film technology. It has a tolerance of 1%. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. This part has an operating temperature of -55 to 155 °C.
Verical:
Res Thick Film 0805 3.01K Ohm 1% 1/8W �100ppm/C Molded SMD Punched Carrier T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF3011V SMD Chip Resistor, Thick Film, 3.01 kohm, 150 V, 0805 [2012 Metric], 125 mW, ± 1%, ERJ6E Series
MASTER:
Res Thick Film 0805 3.01K Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0805 3.01K Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
电阻 3.01 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 0.6 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-6ENF3011V Panasonic 松下 | 当前型号 | 当前型号 |
CRCW08053K01FKTA 威世 | 类似代替 | ERJ-6ENF3011V和CRCW08053K01FKTA的区别 |
NRC10F3011TRF NIC | 类似代替 | ERJ-6ENF3011V和NRC10F3011TRF的区别 |
RK73H2ATTD3011F KOA Speer | 功能相似 | ERJ-6ENF3011V和RK73H2ATTD3011F的区别 |
