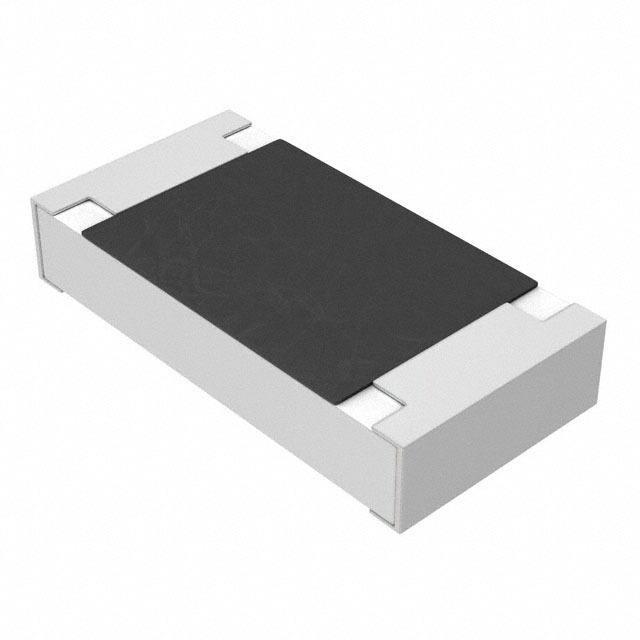

Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/℃ to 150ppm/℃ Pad SMD Automotive T/R
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R
立创商城:
4.7MΩ ±5%
得捷:
RES SMD 4.7M OHM 5% 1/4W 1206
艾睿:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R
Chip1Stop:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/C to 150ppm/C Molded SMD Automotive Punched T/R
Verical:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/C to 150ppm/C Pad SMD Automotive T/R
MASTER:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 1206 4.7M Ohm 5% 0.25W1/4W -400ppm/°C to 150ppm/°C Pad SMD Automotive T/R
额定电压DC 200 V
容差 ±5 %
额定功率 0.25 W
电阻 4.7 MΩ
阻值偏差 ±5 %
工作温度Max 155 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
封装公制 3216
封装 1206
长度 3.20 mm
宽度 1.60 mm
高度 0.6 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 -400ppm/℃ ~ 150ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210030
