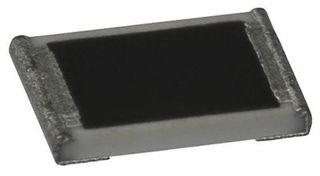

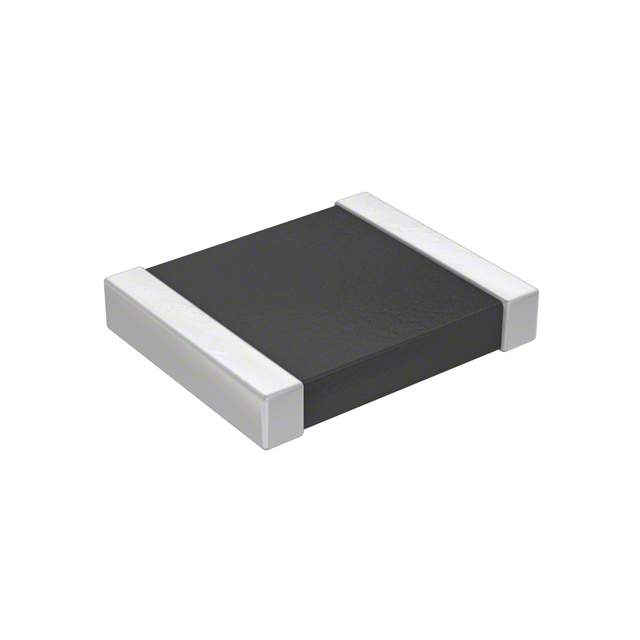

ERJ 系列 1206 47 Ω ±1% 0.25 W ±100 ppm/°C 表面贴装 厚膜 贴片电阻
47 Ohms ±1% 0.25W,1/4W 芯片 1206(3216 公制) 汽车级AEC-Q200 厚膜
得捷:
RES SMD 47 OHM 1% 1/4W 1206
立创商城:
47Ω ±1% 250mW
贸泽:
厚膜电阻器 - SMD 1206 47ohms 1% Tol AEC-Q200
艾睿:
Use this ERJ-8ENF47R0V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 47 Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C.
Verical:
Res Thick Film 1206 47 Ohm 1% 0.25W1/4W ±100ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-8ENF47R0V SMD Chip Resistor, Thick Film, 47 ohm, 200 V, 1206 [3216 Metric], 250 mW, ± 1%, ERJ8E Series
MASTER:
Res Thick Film 1206 47 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 1206 47 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 1206 47 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 200 V
容差 ±1 %
额定功率 0.25 W
电阻 47 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
引脚数 2
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.6 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-8ENF47R0V Panasonic 松下 | 当前型号 | 当前型号 |
RC1206FR-0747RL 国巨 | 完全替代 | ERJ-8ENF47R0V和RC1206FR-0747RL的区别 |
CRCW120647R0FKEA 威世 | 完全替代 | ERJ-8ENF47R0V和CRCW120647R0FKEA的区别 |
ERJ-8GEYJ470V 松下 | 类似代替 | ERJ-8ENF47R0V和ERJ-8GEYJ470V的区别 |
