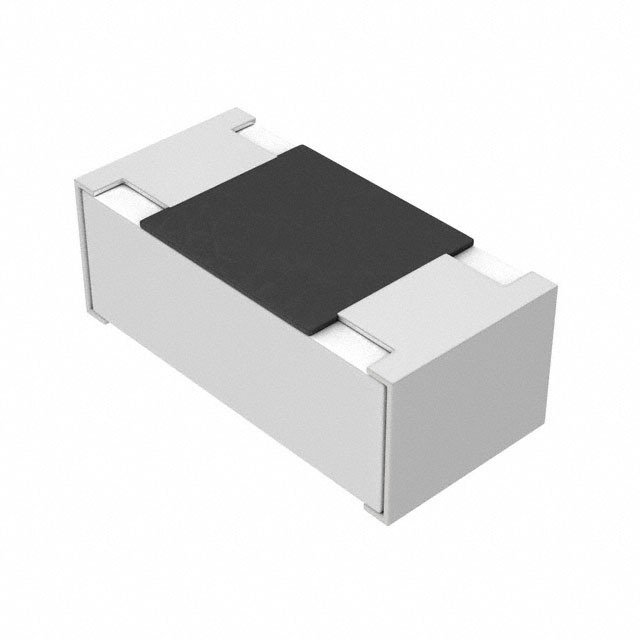

PANASONIC ELECTRONIC COMPONENTS ERJ-1GEF1502C 厚膜电阻, 15KΩ, 50mW, ±5%
Res Thick Film 0201 15K Ohm 1% 0.05W1/20W ±200ppm/°C Pad SMD T/R
得捷:
RES SMD 15K OHM 1% 1/20W 0201
贸泽:
Thick Film Resistors - SMD 0201 15Kohms 1% Tol AEC-Q200
e络盟:
PANASONIC ELECTRONIC COMPONENTS ERJ-1GEF1502C 厚膜电阻, 15KΩ, 50mW, ±5%
艾睿:
Use this ERJ-1GEF1502C fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This durable part has a power rating of 0.05 1/20 W. This product has a resistance value of 15K Ohm. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 0.6 mm long, 0.23 mm tall and 0.3 mm deep. It has a tolerance of 1%. This part has an operating temperature of -55 to 125 °C. This device utilizes thick film technology.
富昌:
ERJ Series 0201 15 kΩ ±1% 0.05 W ±200 ppm/°C Thick Film Chip Resistor
Verical:
Res Thick Film 0201 15K Ohm 1% 0.05W1/20W ±200ppm/C Pad SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-1GEF1502C SMD Chip Resistor, Thick Film, 15 kohm, 25 V, 0201 [0603 Metric], 50 mW, ± 1%, ERJ1G Series
MASTER:
Res Thick Film 0201 15K Ohm 1% 0.05W1/20W ±200ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0201 15K Ohm 1% 0.05W1/20W ±200ppm/°C Pad SMD T/R
Electro Sonic:
Res Thick Film 0201 15K Ohm 1% 0.05W1/20W ±200ppm/°C Pad SMD Automotive T/R
额定电压DC 25.0 V
容差 ±1 %
额定功率 0.05 W
电阻 15 kΩ
阻值偏差 ±1 %
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
封装 0201
长度 0.6 mm
宽度 0.3 mm
高度 0.23 mm
封装 0201
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-1GEF1502C Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-1GNF1502C 松下 | 完全替代 | ERJ-1GEF1502C和ERJ-1GNF1502C的区别 |
RC0201FR-0715KL 国巨 | 类似代替 | ERJ-1GEF1502C和RC0201FR-0715KL的区别 |
ERJ1GNF1502C 松下 | 类似代替 | ERJ-1GEF1502C和ERJ1GNF1502C的区别 |
