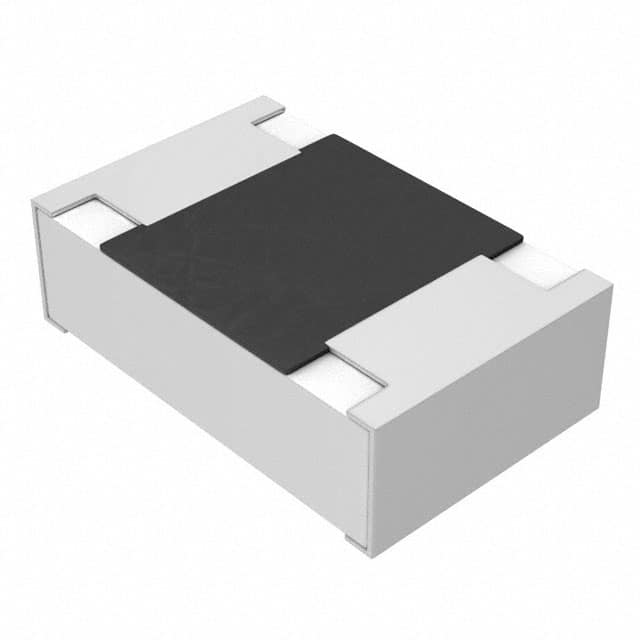

PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF6193V SMD Chip Resistor, Thick Film, 619KΩ, 150V, 0805 [2012 Metric], 0.125W1/8W, ± 1%, ERJ6E Series
619 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 2012 Metric Automotive AEC-Q200 Thick Film
得捷:
RES SMD 619K OHM 1% 1/8W 0805
立创商城:
619kΩ ±1% 125mW
贸泽:
Thick Film Resistors - SMD 0805 619Kohms 1% AEC-Q200
艾睿:
The ERJ-6ENF6193V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 619K Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It has a tolerance of 1%. This device is made with thick film technology. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. This part has an operating temperature of -55 to 155 °C.
Chip1Stop:
Res Thick Film 0805 619K Ohm 1% 0.125W1/8W ±100ppm/C Molded SMD Automotive Punched T/R
Verical:
Res Thick Film 0805 619K Ohm 1% 0.125W1/8W ±100ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF6193V SMD Chip Resistor, Thick Film, 619 kohm, 150 V, 0805 [2012 Metric], 125 mW, ± 1%, ERJ6E Series
Electro Sonic:
Res Thick Film 0805 619K Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
电阻 619 kΩ
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.6 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
