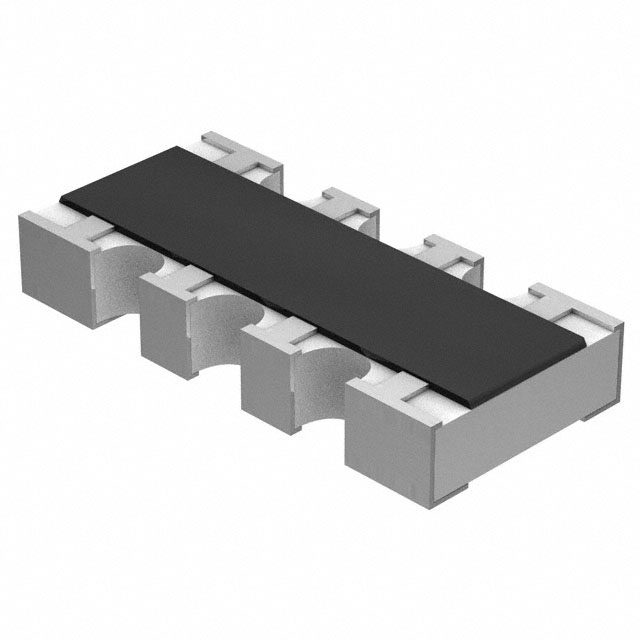

Res Thick Film Array 270Ω 5% ±200ppm/℃ ISOL Molded 8Pin 12064 X 0603 Convex SMD Automotive T/R
270 欧姆 ±5% 62.5mW 每元件功率 隔离 4 器网络,阵列 ±200ppm/°C 1206(3216 公制),凸面,长边端子
立创商城:
270Ω ±5%
得捷:
RES ARRAY 4 RES 270 OHM 1206
艾睿:
Are you looking for a power-saving component that can be implemented in your circuit design? Panasonic brings you their EXB-38V271JV resistor array, essentially an IC chip with multiple resistors built in. This product&s;s 4 resistors have a value of 270 Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 8 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.8 mm. This product is 3.2 mm long, 0.5 mm tall and 1.6 mm deep. The EXB-38V271JV part has a convex termination style. This device utilizes thick film technology.
Verical:
Res Thick Film Array 270 Ohm 5% ±200ppm/C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Automotive T/R
MASTER:
Res Thick Film Array 270 Ohm 5% ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD Automotive T/R
Online Components:
Res Thick Film Array 270 Ohm 5% ±200ppm/°C ISOL Molded 8-Pin 12064 X 0603 Convex SMD Automotive T/R
Electro Sonic:
Res Thick Film Array 270 Ohm 5% ±200ppm/°C ISOL 8-Pin 12064 X 0603 Convex SMD Automotive T/R
触点数 8
额定电压DC 100 V
容差 ±5 %
电阻 270 Ω
阻值偏差 ±5 %
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 8
封装公制 3216
封装 1206
长度 3.2 mm
宽度 1.6 mm
高度 0.5 mm
封装公制 3216
封装 1206
工作温度 -55℃ ~ 125℃
温度系数 ±200 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
制造应用 汽车级AEC-Q200, 汽车级 AEC-Q200
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EXB-38V271JV Panasonic 松下 | 当前型号 | 当前型号 |
NRSNA6I4J271TRF NIC | 功能相似 | EXB-38V271JV和NRSNA6I4J271TRF的区别 |
