EXB-V4V102JV

Res Thick Film Array 1KΩ 5% 200ppm/℃ ISOL Molded 4Pin 06062 X 0603 Concave SMD T/R

1k 欧姆 ±5% 62.5mW 每元件功率 隔离 2 器网络，阵列 ±200ppm/°C 0606，凹陷

得捷:
RES ARRAY 2 RES 1K OHM 0606

艾睿:

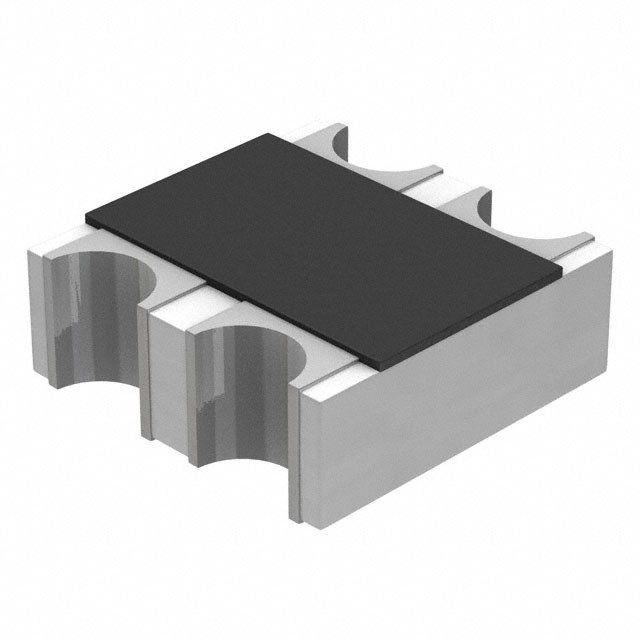

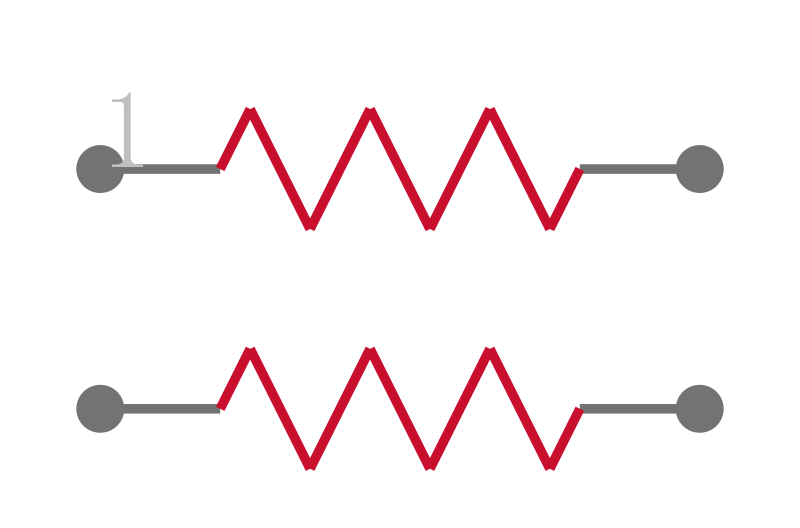

This EXB-V4V102JV resistor array by Panasonic packs multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.063 1/16 W. This product&s;s 2 resistors have a value of 1K Ohm. It has 4 terminals. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 1.6 mm long, 0.6 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 5%. The EXB-V4V102JV part has a concave termination style. This product&s;s terminal pitch is 0.8 mm. This device is made with thick film technology.

Verical:
Res Thick Film Array 1K Ohm 5% ±200ppm/C ISOL Molded 4-Pin 06062 X 0603 Concave SMD T/R

MASTER:
Res Thick Film Array 1K Ohm 5% ±200ppm/°C ISOL 4-Pin 06062 X 0603 Concave SMD T/R

Online Components:
Res Thick Film Array 1K Ohm 5% ±200ppm/°C ISOL Molded 4-Pin 06062 X 0603 Concave SMD T/R

Electro Sonic:
Res Thick Film Array 1K Ohm 5% ±200ppm/°C ISOL 4-Pin 06062 X 0603 Concave SMD T/R
