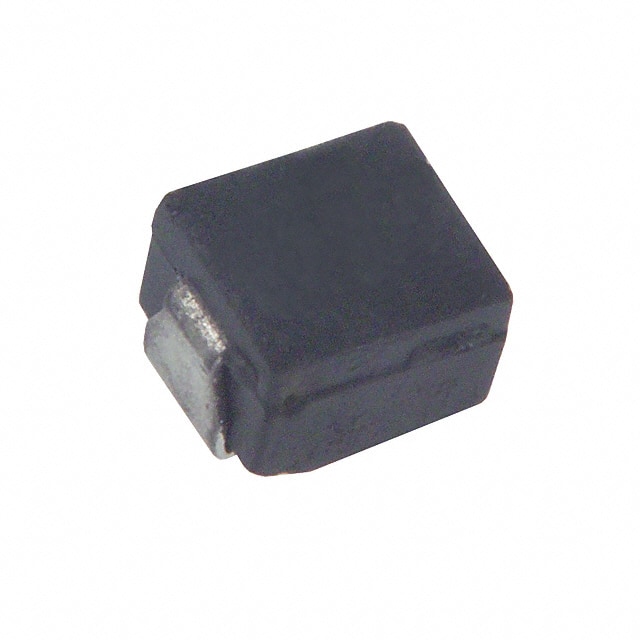

ELJ-FCR56KF

Inductor General Purpose Chip Molded Wirewound 560nH 10% 25.2MHz 25Q-Factor 150mA 1.1Ω DCR 1008 T/R

560nH Unshielded Wirewound Inductor 150mA 1.1Ohm Max 1008 2520 Metric

得捷:
FIXED IND 560NH 150MA 1.1OHM SMD

贸泽:
Fixed Inductors 1008 0.56uH 10% 150 mA 1.1ohm Wirewound

艾睿:
This general purpose chip ELJ-FCR56KF surface mount inductor from Panasonic is placed on the surface of a PCB during surface mount manufacturing processing. This SMD inductor has a minimum operating temperature of -20 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its test frequency is 25.2M Hz, while its minimum self-resonant frequency is 155M Hz. It has an inductance of 560n H. This device is made with wirewound technology. It has a tolerance of 10%. This SMD inductor has a maximum DC current of 150m A with a maximum resistance of 1.1 Ohm. This product is 2.8 mm long, 1.8 mm tall and 2.2 mm deep.

Verical:
Inductor General Purpose Chip Molded Wirewound 0.56uH 10% 25.2MHz 25Q-Factor Ferrite 0.15A 1.1Ohm DCR 1008 T/R

Win Source:
560nH Unshielded Wirewound Inductor 150mA 1.1 Ohm Max 1008 2520 Metric
