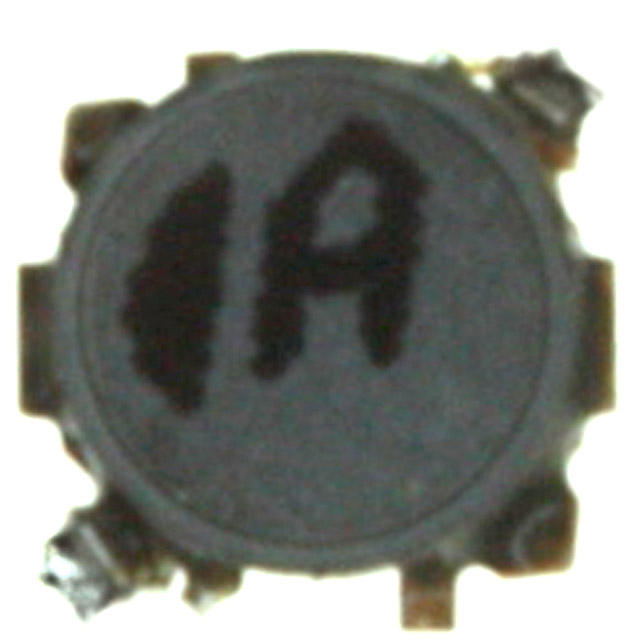

Power Choke Shielded Wirewound 1uH 30% 100kHz 1.8A 52mOhm DCR 1212 T/R
1µH Shielded Wirewound Inductor 1.8A 52mOhm Nonstandard
得捷:
FIXED IND 1UH 1.8A 52 MOHM SMD
艾睿:
Power Choke Shielded Wirewound 1uH 30% 100KHz 1.8A 52mOhm DCR 1212 T/R
Verical:
Power Choke Shielded Wirewound 1uH 30% 100KHz 1.8A 0.052Ohm DCR 1212 T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ELL-VGG1R0N Surface Mount Power Inductor, Choke Coil, ELL-VGG Series, 1 µH, 1.8 A, 2.2 A, Shielded, 0.052 ohm
MASTER:
Power Choke Shielded Wirewound 1uH 30% 100KHz 1.8A 0.052Ohm DCR 1212 T/R
Electro Sonic:
Power Choke Shielded Wirewound 1uH 30% 100KHz 1.8A 0.052Ohm DCR 1212 T/R
额定电流 1.8 A
容差 ±30 %
电感 1 µH
自谐频率 100 kHz
电阻 52.0 mΩ
共振频率 100 kHz
电感公差 ±30 %
测试频率 100 kHz
电阻DC） 52 mΩ
电阻DC Max 0.052 Ω
安装方式 Surface Mount
引脚数 2
封装 1212
长度 3 mm
宽度 3 mm
高度 1.5 mm
封装 1212
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8504508000
