ERJ-12ZYJ122U概述

ERJ 系列 2010 1.2 kΩ ±5 % 0.75 W ±200 ppm/°C 模压 厚膜 贴片电阻

Res Thick Film 2010 1.2K Ohm 5% 0.75W3/4W ±200ppm/°C Pad SMD Automotive T/R


立创商城:
1.2kΩ ±5% 750mW


得捷:
RES SMD 1.2K OHM 5% 3/4W 2010


贸泽:
Thick Film Resistors - SMD 2010 1.2Kohms 5% AEC-Q200


艾睿:
This is a ERJ-12ZYJ122U fixed single surface-mount resistor from Panasonic. This dependable part has a power rating of 0.75 3/4 W. This product has a resistance value of 1.2K Ohm. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This part has an operating temperature of -55 to 155 °C. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. This device is made with thick film technology. It has a tolerance of 5%.


Verical:
Res Thick Film 2010 1.2K Ohm 5% 0.75W3/4W ±200ppm/C Molded SMD Automotive T/R


Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ-12ZYJ122U  SMD Chip Resistor, Thick Film, 1.2 kohm, 200 V, 1812 [4532 Metric], 750 mW, ± 5%, ERJ12 Series


MASTER:
Res Thick Film 2010 1.2K Ohm 5% 0.75W3/4W ±200ppm/°C Pad SMD Automotive T/R


Online Components:
Res Thick Film 2010 1.2K Ohm 5% 0.75W3/4W ±200ppm/°C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 2010 1.2K Ohm 5% 0.75W3/4W ±200ppm/°C Pad SMD Automotive T/R


Win Source:
RES SMD 1.2K OHM 5% 3/4W 2010


ERJ-12ZYJ122U中文资料参数规格
技术参数

额定电压DC 200 V

容差 ±5 %

额定功率 0.75 W

电阻 1.2 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 5025

封装 2010

外形尺寸

长度 4.5 mm

宽度 3.2 mm

高度 0.6 mm

封装公制 5025

封装 2010

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

ERJ-12ZYJ122U引脚图与封装图

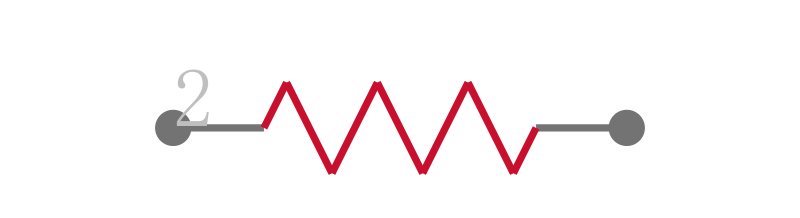

ERJ-12ZYJ122U引脚图

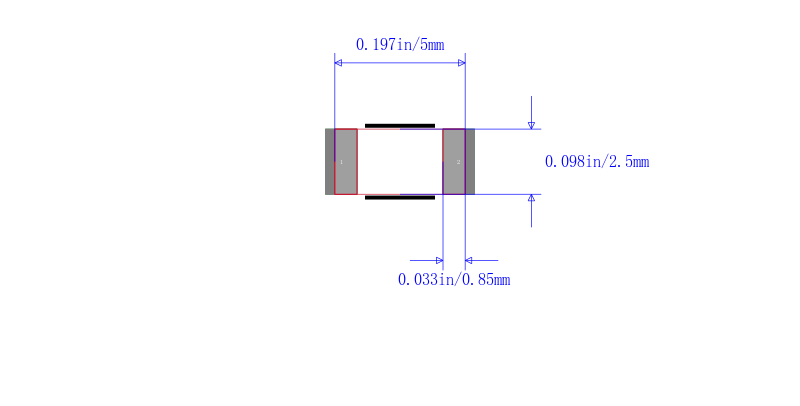

ERJ-12ZYJ122U封装图

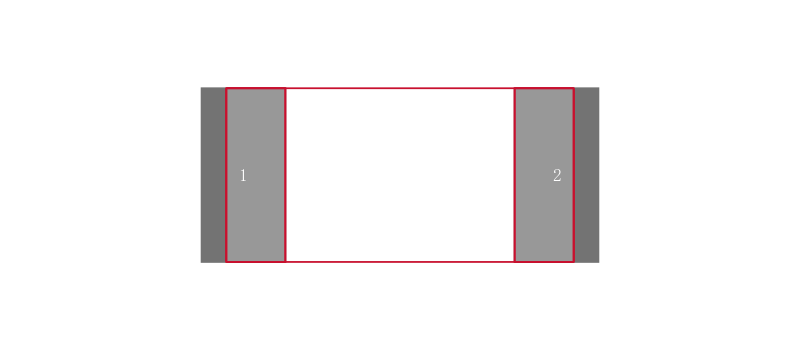

ERJ-12ZYJ122U封装焊盘图
在线购买ERJ-12ZYJ122U
型号: ERJ-12ZYJ122U
制造商: Panasonic 松下
描述:ERJ 系列 2010 1.2 kΩ ±5 % 0.75 W ±200 ppm/°C 模压 厚膜 贴片电阻
替代型号ERJ-12ZYJ122U
型号/品牌 代替类型 替代型号对比

ERJ-12ZYJ122U

Panasonic 松下

当前型号

当前型号

ERJ-12SF1201U

松下

类似代替

ERJ-12ZYJ122U和ERJ-12SF1201U的区别

CRCW20101K20JNEF

威世

类似代替

ERJ-12ZYJ122U和CRCW20101K20JNEF的区别

RK73B2HTTE122J

KOA Speer

类似代替

ERJ-12ZYJ122U和RK73B2HTTE122J的区别
