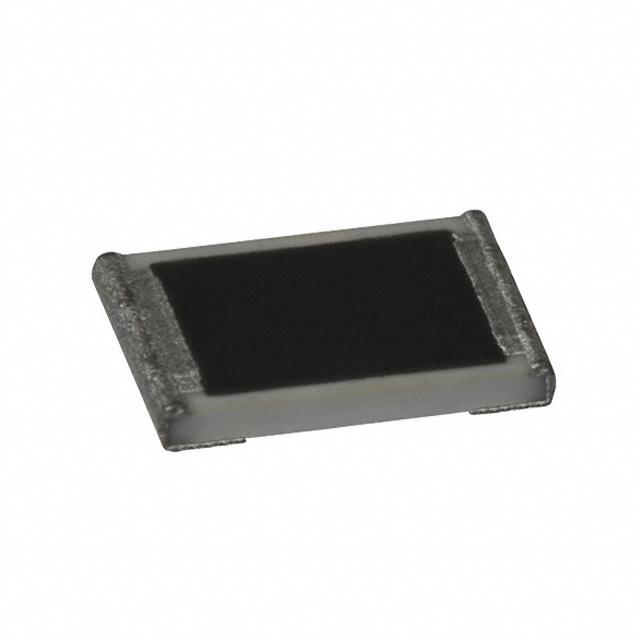

ERA 系列 0603 90.9 kΩ ±0.1% 0.1 W ±25 ppm/°C 薄膜 金属 贴片电阻
Res Thin Film 0603 90.9K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
立创商城:
90.9kΩ ±0.1% 100mW
得捷:
RES SMD 90.9KOHM 0.1% 1/10W 0603
贸泽:
Thin Film Resistors - SMD 0603 90.9Kohm 0.1% 25ppm
艾睿:
This is a ERA-3AEB9092V fixed single surface-mount resistor from Panasonic. This product has a resistance value of 90.9K Ohm. This durable part has a power rating of 0.1 1/10 W. Its temperature coefficient is ±25 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This part has an operating temperature of -55 to 155 °C. This device utilizes thin film technology.
Verical:
Res Thin Film 0603 90.9K Ohm 0.1% 0.1W1/10W ±25ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERA-3AEB9092V Surface Mount Chip Resistor, Thin Film, AEC-Q200 ERA Series, 90.9 kohm, 100 mW, 0.1%, 75 V
MASTER:
Res Thin Film 0603 90.9K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thin Film 0603 90.9K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thin Film 0603 90.9K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±0.1 %
额定功率 0.1 W
电阻 90.9 kΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8533210040
